Repair Procedures: Replacement

Remove the front seat track mounting cover.
After loosening the seat assembly mounting bolts, remove the front seat assembly (A).
Tightening torque: 49.0 ~ 63.7N.m (5.0 ~ 6.5kgf.m, 36.2~47.0lb-ft)

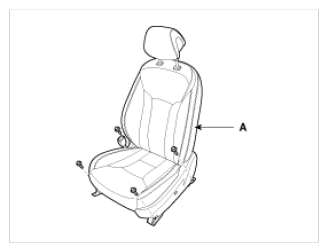

Fig 1: Identifying Front Seat Assembly With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the seat buckle connector (A), seat warmer connector (B), SAB connector (C), PODS connector (D).
[Driver's]

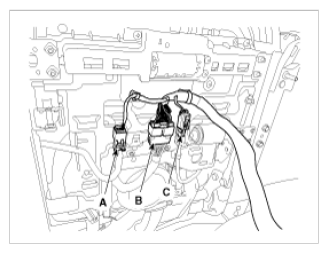

Fig 2: Identifying Seat Buckle, Seat Warmer And SAB Connector
Courtesy of HYUNDAI MOTOR AMERICA

[Passenger's]

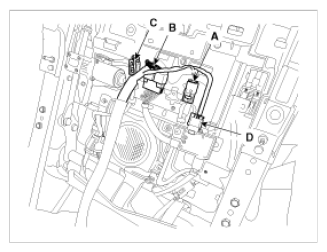

Fig 3: Identifying Seat Buckle, Seat Warmer, SAB And PODS Connector
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- SEAT MOUNTING BOLT INSTALLATION PROCEDURE
- Set the seat into the most rearward position. Check that each slide is locked and then tighten the front mounting bolt temporarily.
- Set the seat into most forward position. Check that each slide is locked, and then Tighten the rear mounting bolt completely.
- Set the seat into the most rearward position. Check the front mounting bolt completely.
- Check that the seat operates to and fro smoothy and the locking portion locks properly.
