Components and Components Location: Components: [RH]

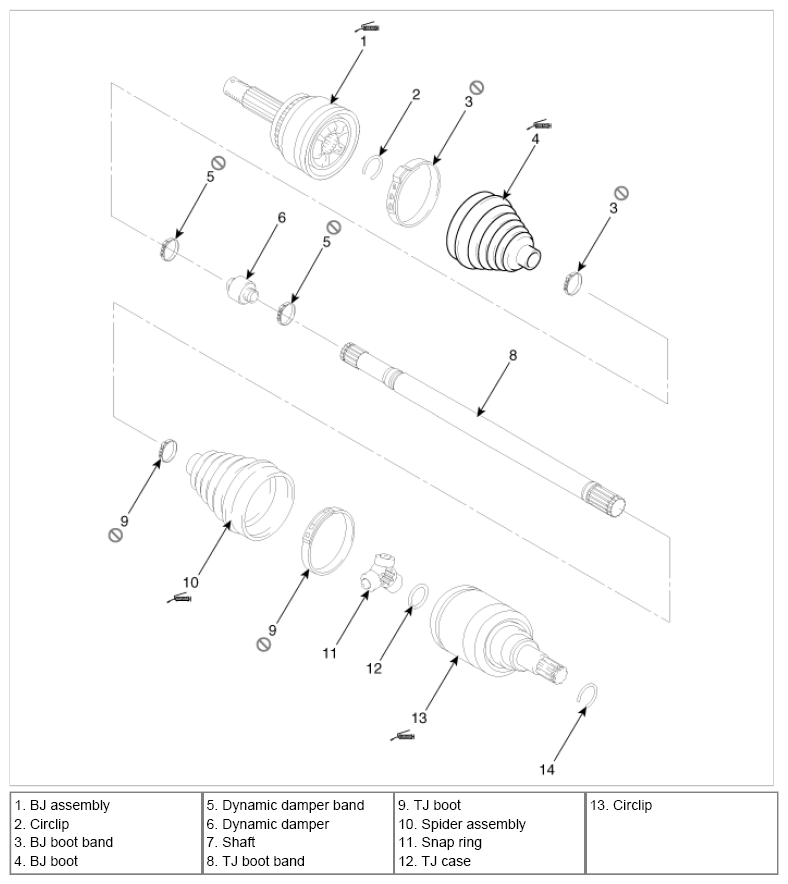

Fig 1: Identifying BJ Boot Components (RH)
G08810048Courtesy of HYUNDAI MOTOR AMERICA
