Removal and Installation

Remove the battery.
(Refer to "BATTERY ")
Remove the engine cover.
Remove the air duct (A).

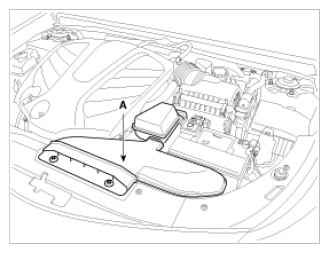

Fig 1: Identifying Air Duct
Courtesy of HYUNDAI MOTOR AMERICA
Remove the air cleaner assembly.
1. Disconnect barometric pressure sensor (BPS) connector (A)
2. Disconnect the breather hose (B)
3. Disconnect the intensifier hose (C)
4. Loosen the clamp (D) and then disconnect the air intake hose from the throttle body.
  Tightening torque: 2.9 ~ 4.9 N.m (0.3 ~ 0.5 kgf.m, 2.2 ~ 3.6 lb-ft)
5. Remove the air cleaner assembly (E).
  Tightening torque: 7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)

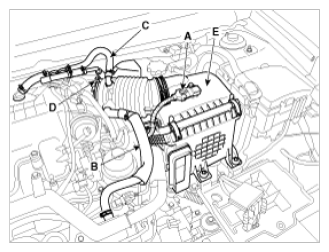

  Fig 2: Identifying Air Cleaner Assembly And Related Components
  Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
