Lower Oil Pan

1. Using a gasket scraper, remove all the old packing material from the gasket surfaces.
2. Before assembling the oil pan, the liquid sealant TB 1217H should be applied on oil pan. The part must be assembled within 5 minutes after the sealant was applied.

   Bead width  : 2.5mm (0.1in.)

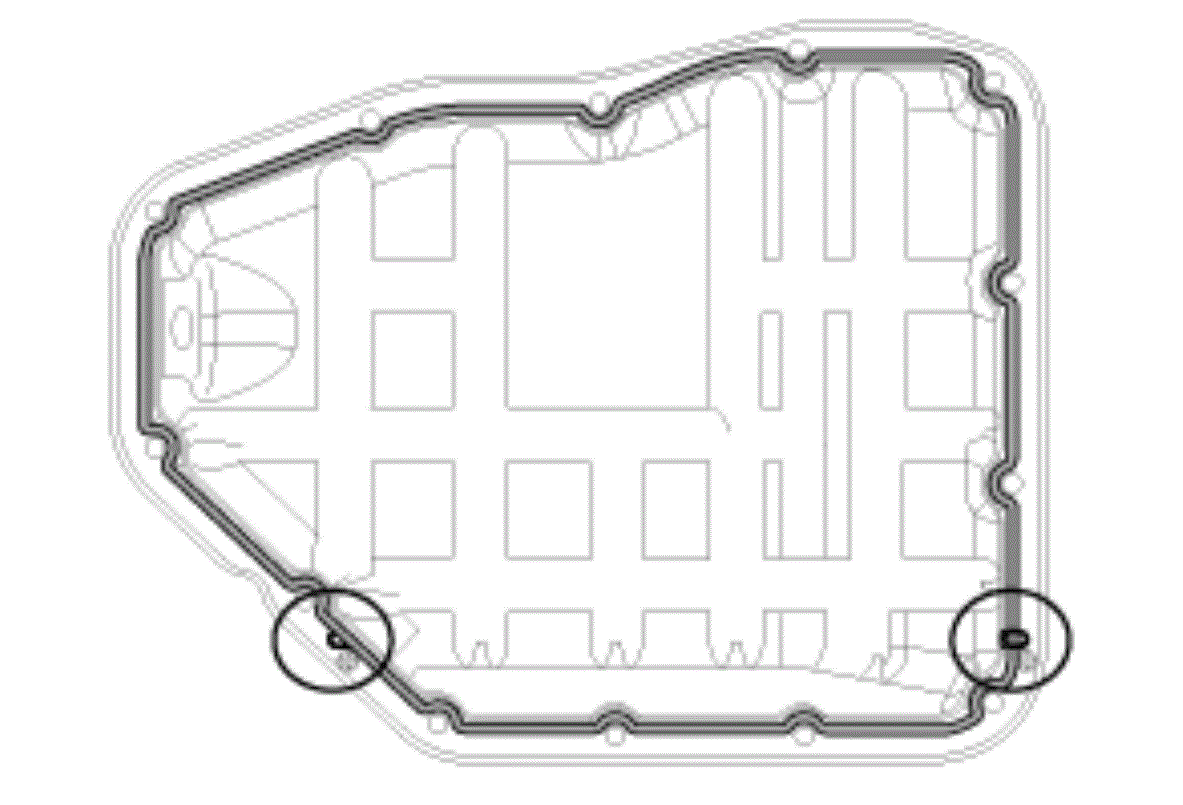

   Fig 1: Identifying Bead Applying Area On Lower Oil Pan

   Courtesy of HYUNDAI MOTOR AMERICA
   CAUTION:

   • Clean the sealing face before assembling two parts.
   • Remove harmful foreign matters on the sealing face before applying sealant.
   • When applying sealant gasket, sealant must not protrude into the inside of oil pan.
   • To prevent leakage of oil, apply sealant gasket to the inner threads of the bolt holes.
3. Install the oil pan (A).

   Uniformly tighten the bolts in several passes.

   Tightening torque:  9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)

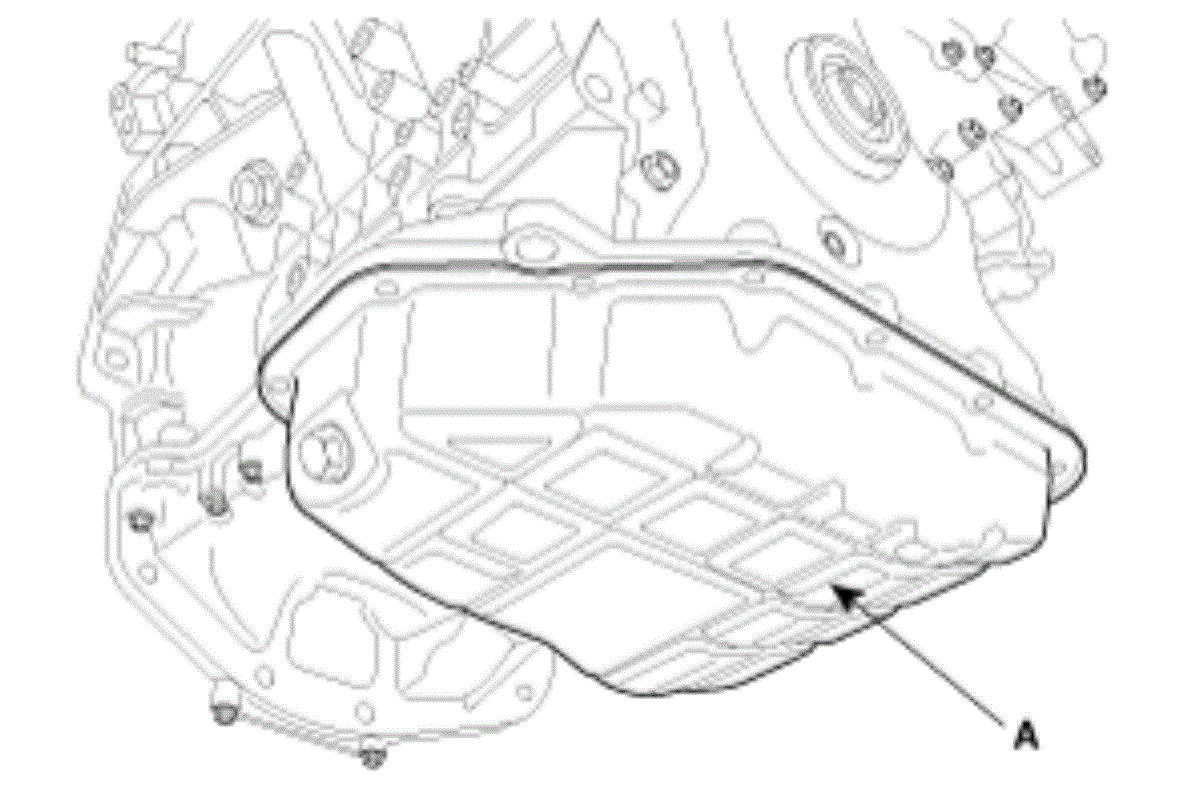

   Fig 2: Identifying Oil Pan

   Courtesy of HYUNDAI MOTOR AMERICA

(Refer to "FRONT MUFFLER ")
