Fuel Pump

Turn the ignition switch OFF and then remove battery (-) cable.
Remove the fuel pump assembly.

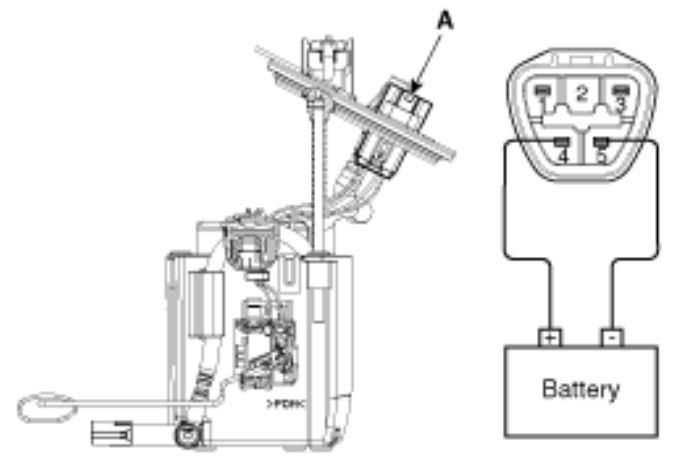

Check motor operation by fuel pump connector (A) connecting power (No. 4) and ground (No. 5).

Fig 1: Checking Motor Operation By Fuel Pump Connector Connecting Power (No. 4) And Ground (No. 5)

G08809764

Courtesy of HYUNDAI MOTOR AMERICA

Pin No.	Description
1	Fuel sender ground
2	-
3	Fuel sender signal
4	Fuel pump motor (+)
5	Fuel pump motor ground
