Signal Waveform & Data

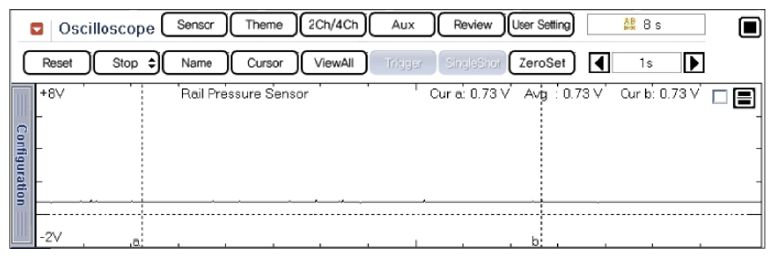

Fig 1: Rail Pressure Sensor Normal Waveform (At Idle)
G08817174Courtesy of HYUNDAI MOTOR AMERICA

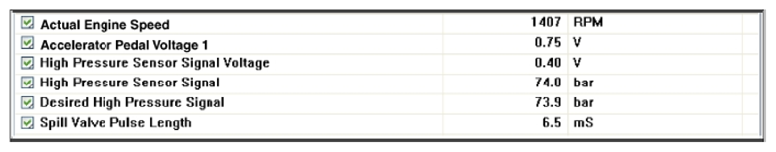

Fig 2: Rail Pressure Sensor Current Data
G08817175Courtesy of HYUNDAI MOTOR AMERICA

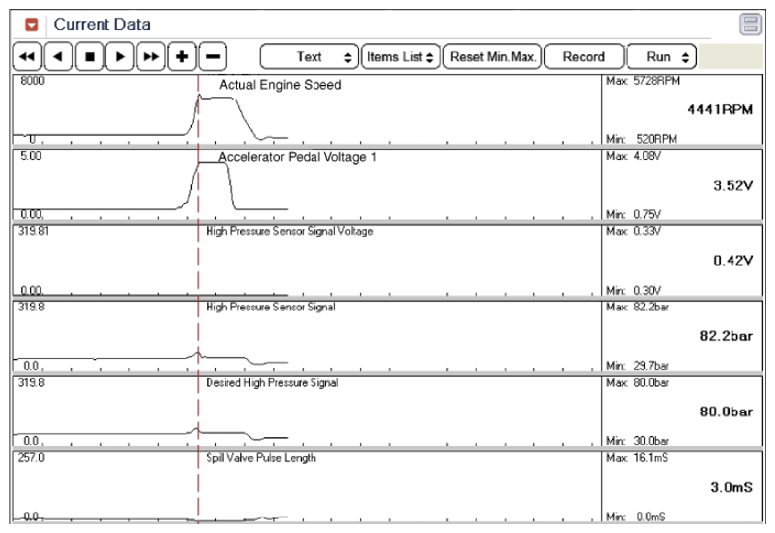

Fig 3: Rail Pressure Sensor Normal Waveform (At Acceleration)
G08817176Courtesy of HYUNDAI MOTOR AMERICA
