Signal Circuit Inspection

Check short to ground in harness
1. IG "OFF" and disconnect ETC Motor & TPS connector and PCM connector.
2. Measure resistance between TPS2 signal terminal of ETC Motor & TPS harness connector and chassis ground. (Measurement "A")
3. Measure resistance between TPS2 signal and TPS ground terminals of ETC Motor & TPS harness connector. (Measurement "B")
  Specification: Infinite

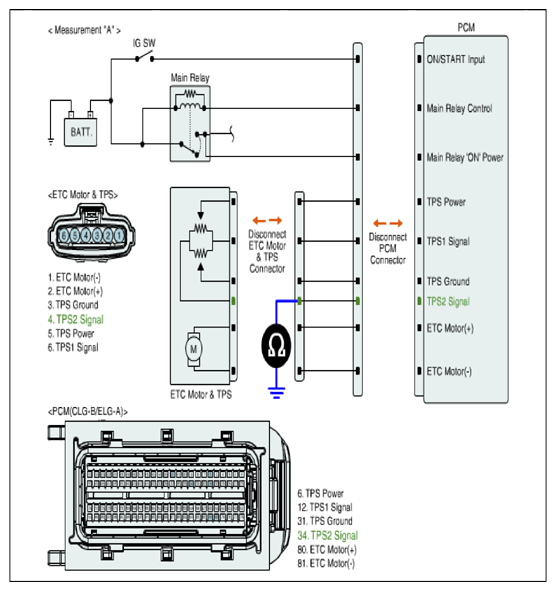

  Fig 1: Measuring Resistance Between TPS2 Signal Terminal Of ETC Motor & TPS Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR AMERICA

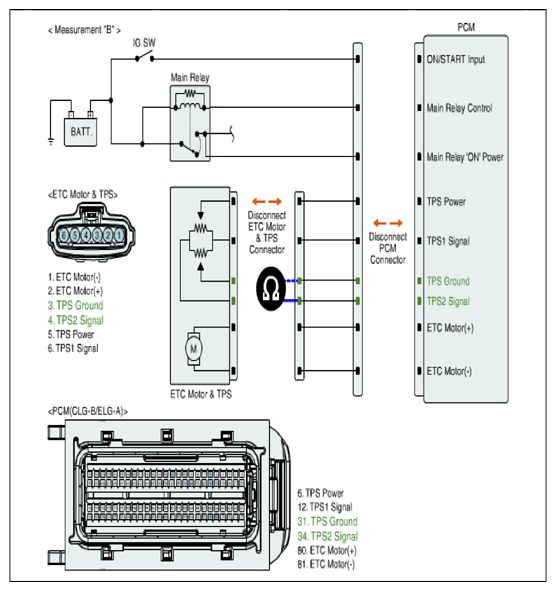

  Fig 2: Measuring Resistance Between TPS2 Signal And TPS Ground Terminals Of ETC Motor & TPS Harness Connector
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specification?
  YES
  - Go to " 2 Check open in harness" as follows.
  NO
  - Repair short to ground in harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check open in harness
1. IG "OFF" and disconnect ETC Motor & TPS connector and PCM connector.
2. Measure resistance between TPS2 signal terminal of ETC Motor & TPS harness connector and TPS2 signal terminal of PCM harness connector.
  Specification: Below 1Ω

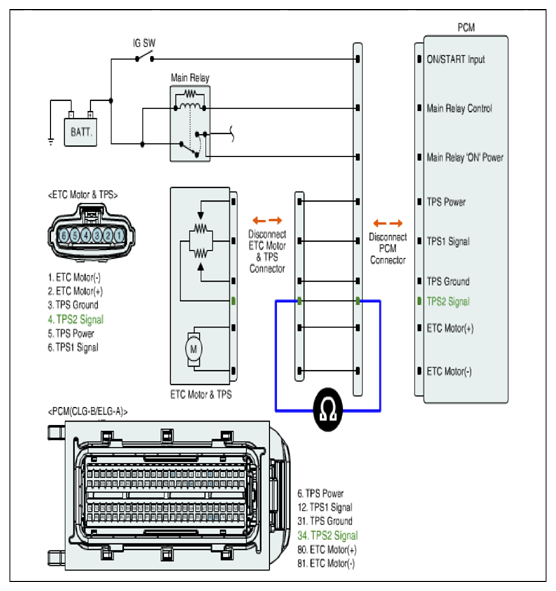

  Fig 3: Measuring Resistance Between TPS2 Signal Terminal Of ETC Motor & TPS Harness Connector And TPS2 Signal Terminal Of PCM Harness Connector
  Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured resistance within specification?
  YES
  - Go to "Ground Circuit Inspection" procedure.
  NO
  - Repair open in harness, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
