Engine Control System Diagnosis (3 Of 3)
>>
DTC P0685: ECM/PCM Power Relay Control Circuit/Open
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

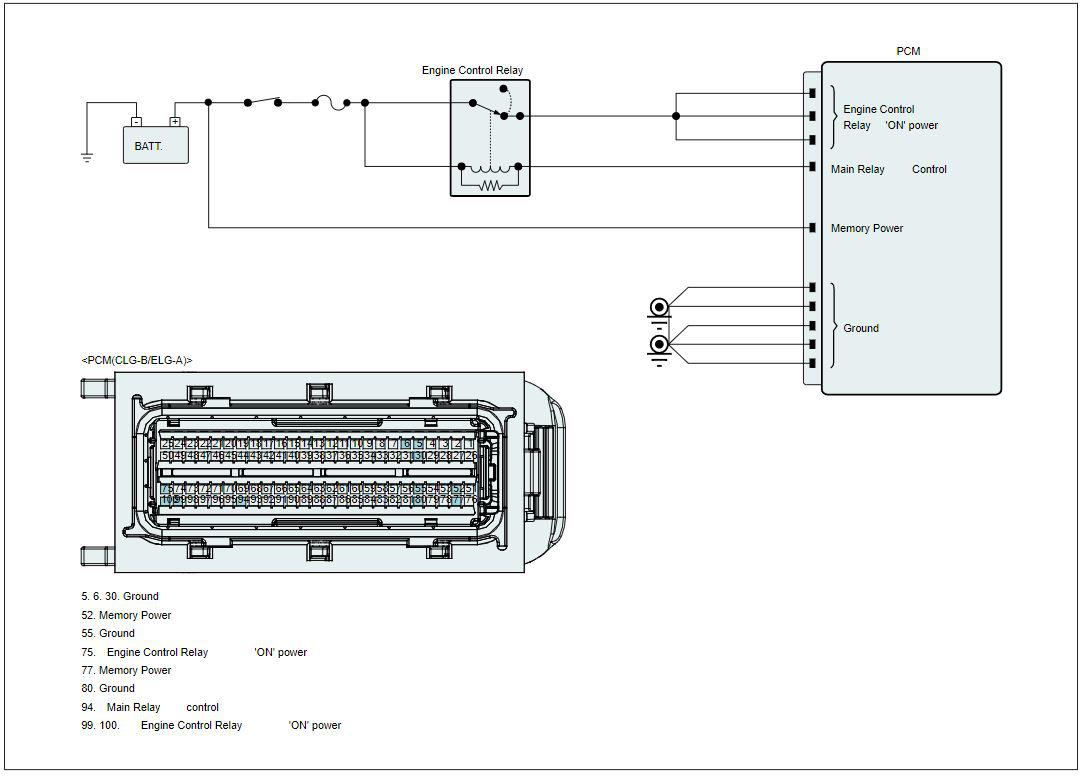

Fig 1: PCM Diagnostic Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
