Engine Control System Diagnosis (3 Of 3)
>>
DTC P2272: O2 Sensor Signal Stuck Lean (Bank 2 Sensor 2)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

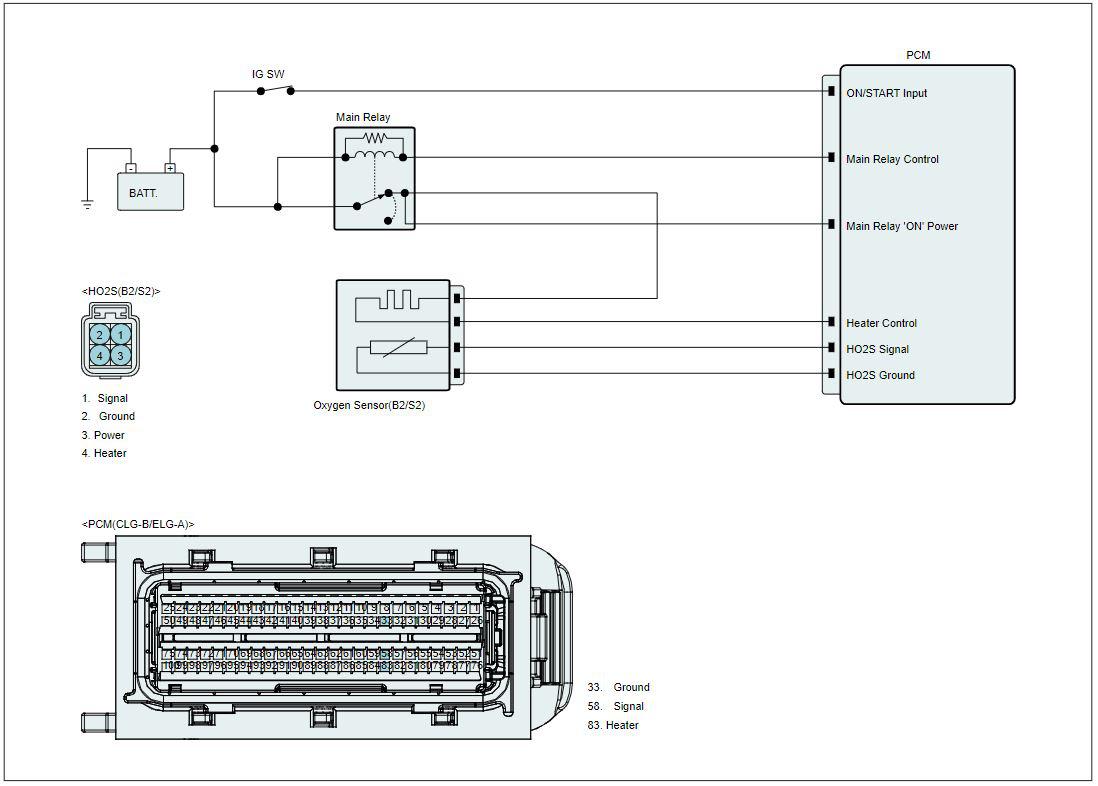

Fig 1: Oxygen Sensor (B2/S2) Diagnostic Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
