Transaxle Range Switch Connector End View (CLG01)

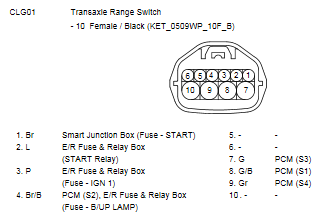

Fig 1: Transaxle Range Switch Connector End View (CLG01)
G10775864Courtesy of HYUNDAI MOTOR AMERICA
