Ambient Temperature Sensor Connector End View (E49)

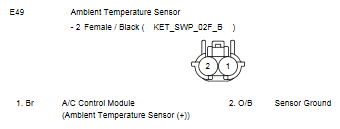

Fig 1: Ambient Temperature Sensor Connector End View (E49)
G10775862Courtesy of HYUNDAI MOTOR AMERICA
