Audio Remote Control Switch (LH HIGH) Connector End View (M102-2)

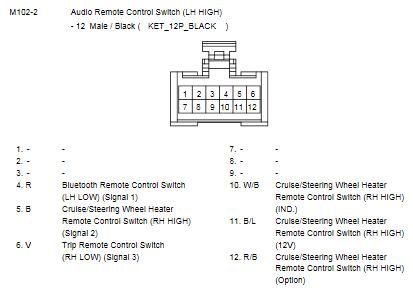

Fig 1: Audio Remote Control Switch (LH HIGH) Connector End View (M102-2)
G10775807Courtesy of HYUNDAI MOTOR AMERICA
