PODS Reset

Ignition "OFF", connect scantool.
Ignition "ON" & Engine "OFF", select Passenger Occupant Detecting System and select "PODS Reset" mode.
And then press "ENTER"

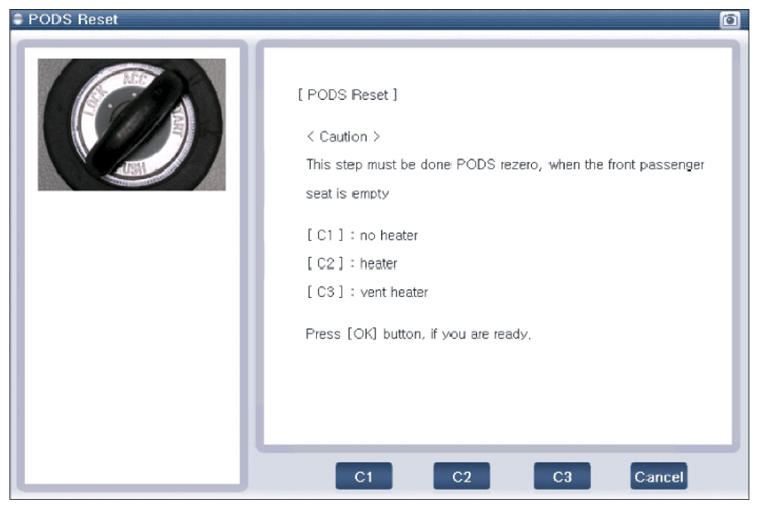

Fig 1: Display - PODS Reset (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Display - PODS Reset (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

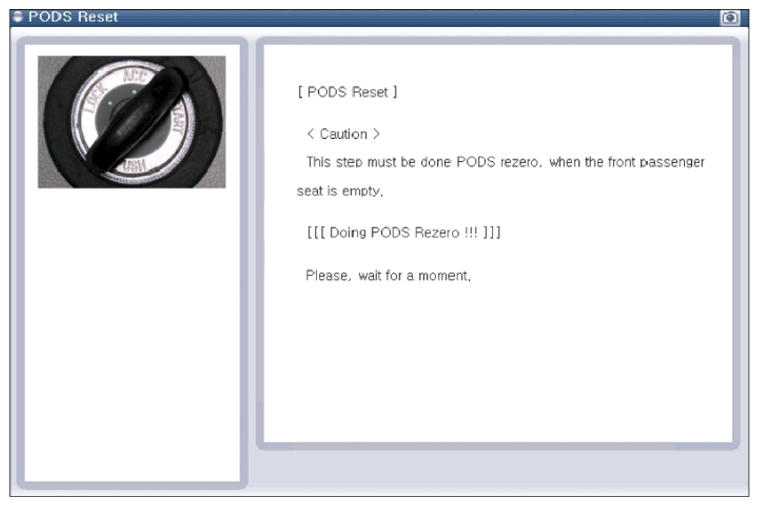

Fig 3: Display - PODS Reset (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

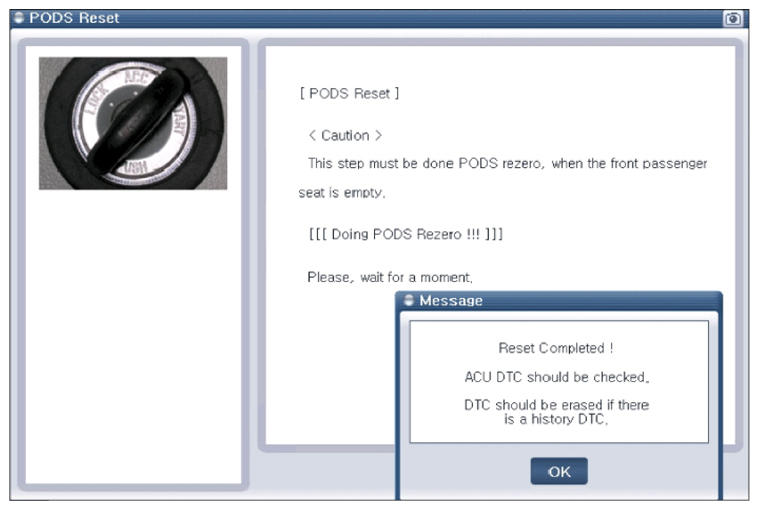

Fig 4: Display - PODS Reset (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Monitor the "PAB Real Time Information Of Current Data" parameter on the Scantool.

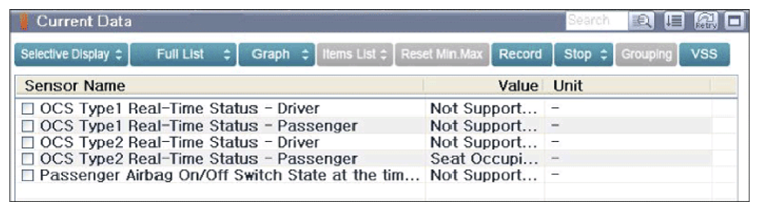

Fig 5: Display - PAB Real Time Status Of Current Data
Courtesy of HYUNDAI MOTOR AMERICA
Is DTC present problem?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or Passenger side PODS-F sensor Mat & ECU connector or was repaired and Passenger side PODS-F sensor Mat & ECU memory was not cleared.
  Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
- Repair or replace as necessary, then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
