Shift Cable Alignment Inspection

* P0706 is happened by malfunction of Shift Cable alignment between TGS Lever and Transmission Range Sensor. So that It must check Shift Cable alignment and Shift lever.

Check the Alignment of Shift Cable

1. Move TGS lever to "N" position. and unfasten Shift cable - Manual Control Lever nut and Transmission Range sensor 2 bolts.
2. Set Manual Control Lever in "N" position.

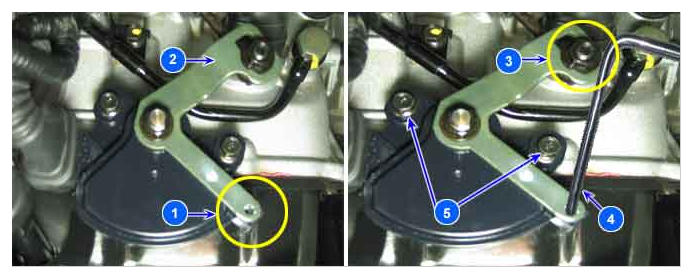

Fig 1: Manual Control Lever And Jig
Courtesy of HYUNDAI MOTOR AMERICA
3. Insert "N setting Jig(Ø5)" into the "N setting hole"
4. Fasten the Shift cable - Manual Control Lever nut and Transmission Range sensor 2 bolts.

   * Beware of pull or push between Shift Cable and Manual Control Lever.

5. Remove the Jig from "N setting hole"

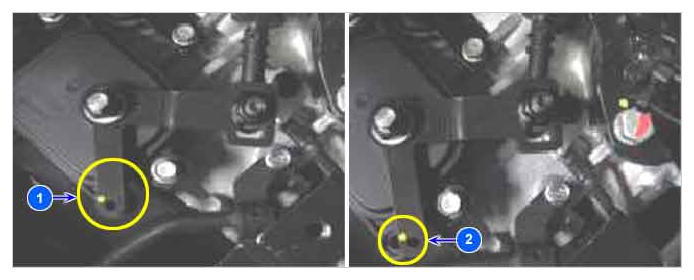

Fig 2: Good And Faulty N Alignments
Courtesy of HYUNDAI MOTOR AMERICA
6. Is the problem solved?

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Go to "WIRING INSPECTION " procedure.

Check the Shift Lever

1. Move shift lever "N" to "D" range.
2. Check the Shift lever is stop between "N" range and "D" range.
3. If the Shift lever is stop between "N" range and "D" range, replace Shift lever.
4. After complete above procedure, Move shift lever "P" to "D" range 2 times.

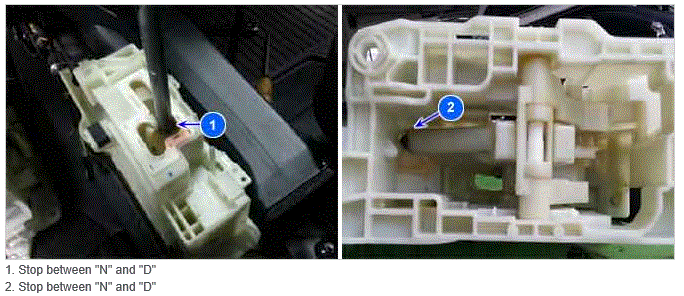

   Fig 3: Checking Shift Lever

   Courtesy of HYUNDAI MOTOR AMERICA
5. Is the problem solved?

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Go to "WIRING INSPECTION " procedure.
