Front Wiper High Speed Control

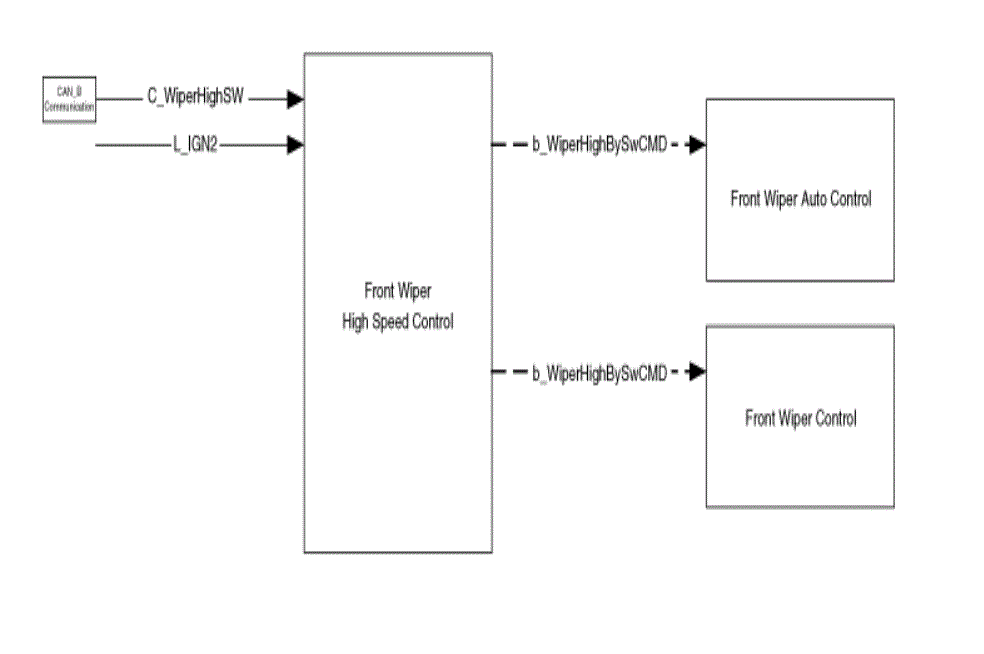

Fig 1: Front Wiper High Speed Control System Function Diagram
G08814253Courtesy of HYUNDAI MOTOR AMERICA
Function Characteristics Name
Signal Label Spec. Designation
Input Logic L_IGN2 Ignition 2 Signal
CAN_B Communication C_WiperHighSW Wiper High Switch from MFSW
Output Internal b_WiperHighBySwCMD Wiper High Speed Output command by Switch
