Circuit Diagram

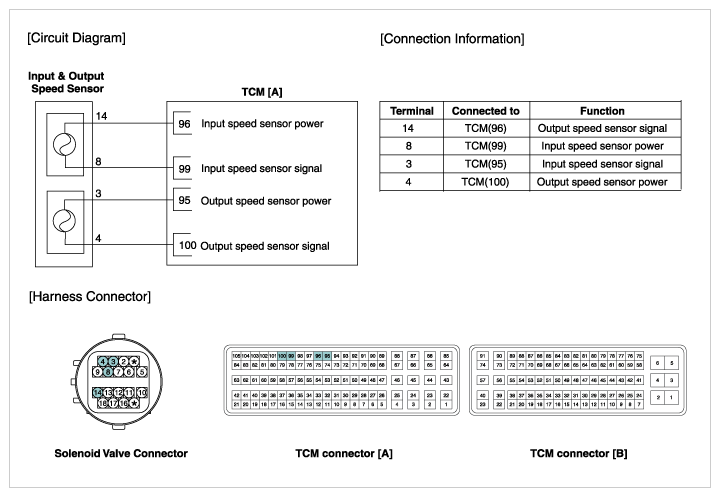

Fig 1: Input And Output Speed Sensor Circuit Diagram And Connector Terminal Ientification
G10255951Courtesy of HYUNDAI MOTOR AMERICA
