Components and Components Location: Components

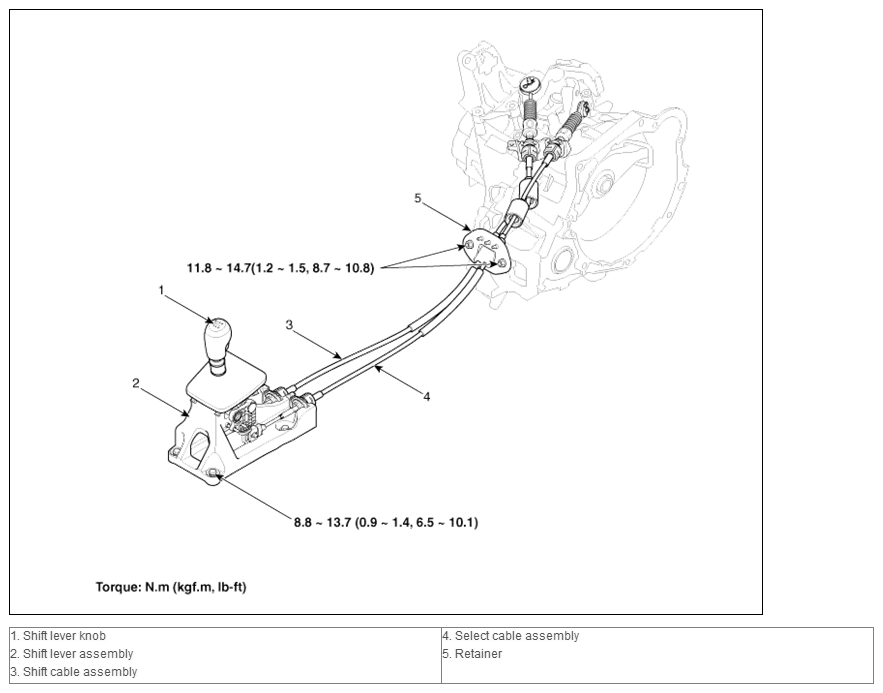

Fig 1: Manual Transaxle Control System Component Locations With Torque Specification
G10253080Courtesy of HYUNDAI MOTOR AMERICA
