Components And Components Location: Components

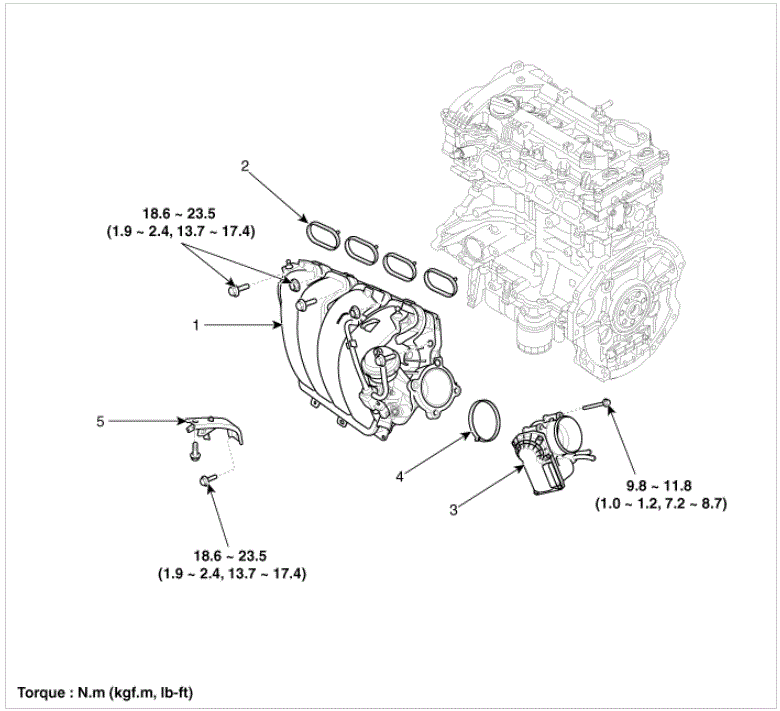

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G00554153Courtesy of HYUNDAI MOTOR AMERICA
1. Intake manifold assembly 4. O-ring
2. Intake manifold gasket 5. Intake manifold stay
3. Electronic throttle body
