Elantra GT Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System
>>
Accelerator Position Sensor (APS)
>>
Schematic Diagrams
>>
Circuit Diagram
>>
(A/T)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram: (A/T)

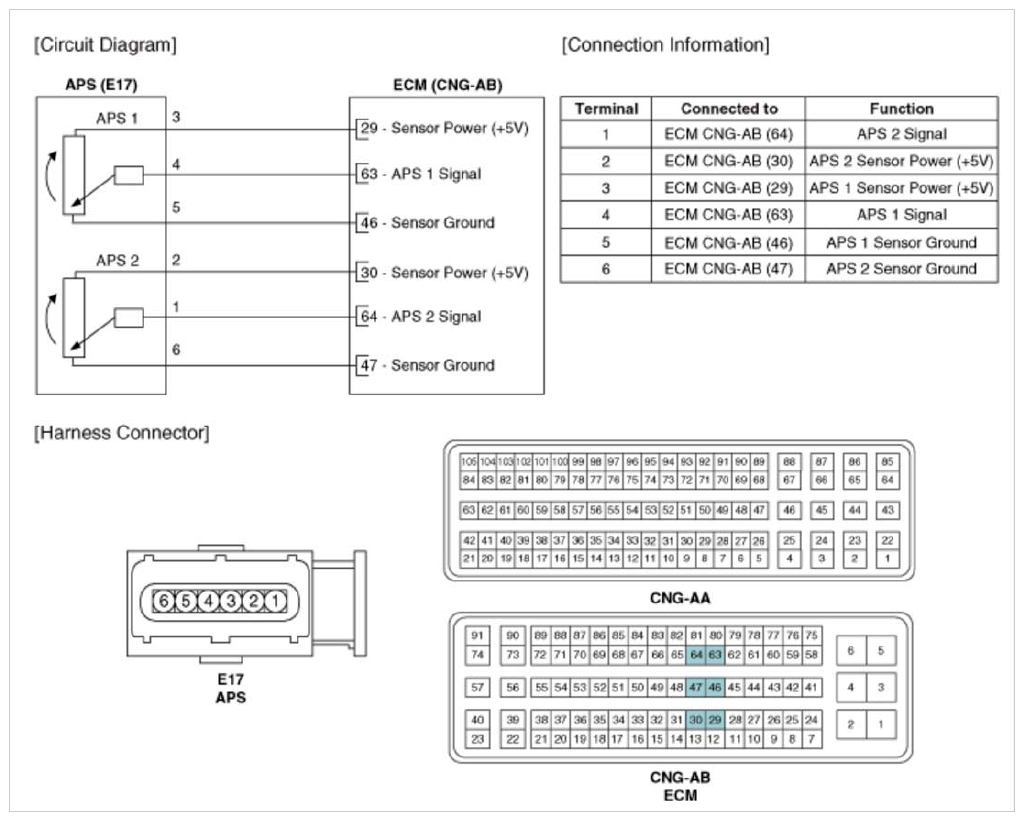

Fig 1: APS Schematic Diagrams (A/T)
