Select cable adjustment

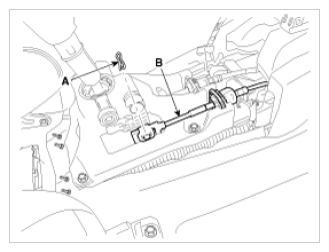

Remove the select cable snap pin (A) and then remove the select cable (B) from the shift lever pin.

Fig 1: Identifying Select Cable Snap Pin And Select Cable
Courtesy of HYUNDAI MOTOR AMERICA
Shift the shift lever to 3rd gear.

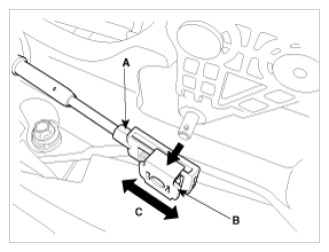

Move the slide clip (B) of guide member (A) in the direction as shown in the illustration.

Fig 2: Moving Slide Clip Of Guide Member
Courtesy of HYUNDAI MOTOR AMERICA

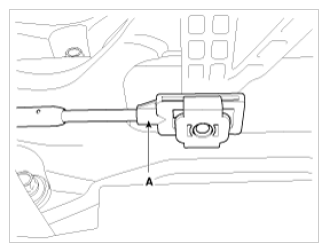

Install the select cable (A).

Fig 3: Identifying Select Cable
Courtesy of HYUNDAI MOTOR AMERICA

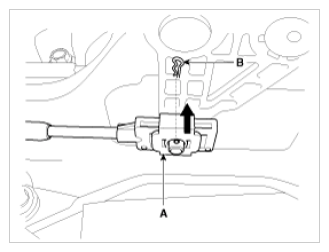

Insert the slide clip (A) in the direction as shown in the illustration and then install the snap pin (B).

Fig 4: Inserting Slide Clip
Courtesy of HYUNDAI MOTOR AMERICA
