Repair procedures: Installation

CAUTION:

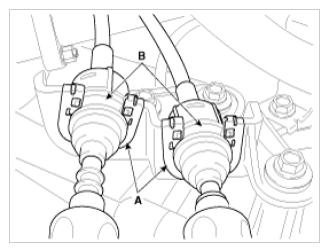

Install the control cable (B) and clip (A) on the bracket.

Fig 1: Identifying Control Cable And Clip
Courtesy of HYUNDAI MOTOR AMERICA

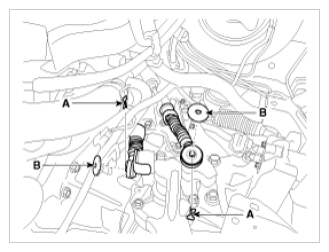

Install the washer (B) and pin (A).

Fig 2: Identifying Washer And Pin
Courtesy of HYUNDAI MOTOR AMERICA

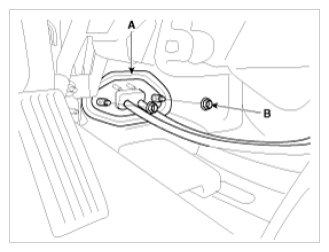

Tighten the nut (B) after install the retainer (A).
Tightening torque:

11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7 ~ 10.8 lb-ft)

Fig 3: Identifying Retainer And Nut
Courtesy of HYUNDAI MOTOR AMERICA
Install the crash pad and cowl cross bar.
(Refer to "COWL CROSS BAR ASSEMBLY ")
Install the heater unit.
(Refer to "HEATER UNIT ")

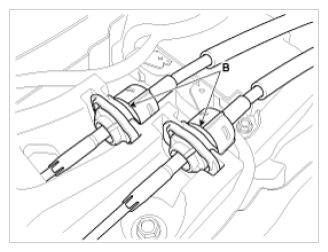

Install the cable guide (B) on lever assembly.

Fig 4: Installing Cable Guide On Lever Assembly
Courtesy of HYUNDAI MOTOR AMERICA

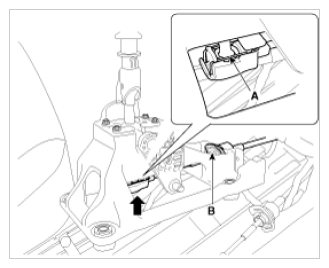

Install the shift cable (B) and clip (A).

Fig 5: Locating Shift Cable And Clip
Courtesy of HYUNDAI MOTOR AMERICA

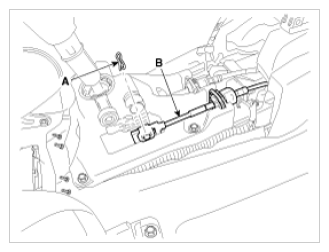

Shift lever to "3rd".
Install the snap pin (A) after install the select cable (B).
CAUTION:
- Install the snap pin (A) after adjust the select cable (B).
  (Refer to "ADJUSTMENT ")
Fig 6: Identifying Snap Pin And Select Cable
Courtesy of HYUNDAI MOTOR AMERICA

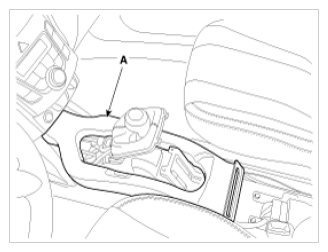

Install the air duct (A).

Fig 7: Identifying Air Duct
Courtesy of HYUNDAI MOTOR AMERICA
Install the floor console assembly.
(Refer to "FLOOR CONSOLE ")
Install the following components:
1. Engine cover.
  (Refer to "ENGINE COVER ")
2. Air cleaner assembly and air duct.
  (Refer to "AIR CLEANER ")
3. Battery and battery tray.
  (Refer to "BATTERY ")
