Repair procedures: Removal

Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ")

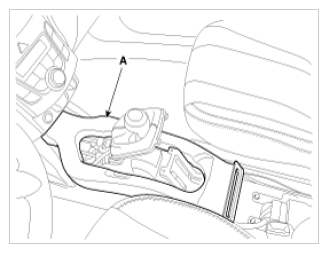

Remove the air duct (A).

Fig 1: Identifying Air Duct
Courtesy of HYUNDAI MOTOR AMERICA

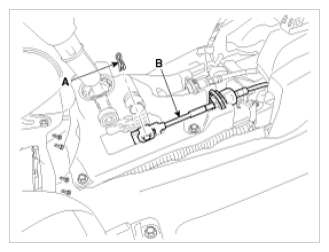

Remove the select cable snap pin (A) and then remove the select cable (B) from the shift lever pin.

Fig 2: Identifying Cable And Snap Pin
Courtesy of HYUNDAI MOTOR AMERICA

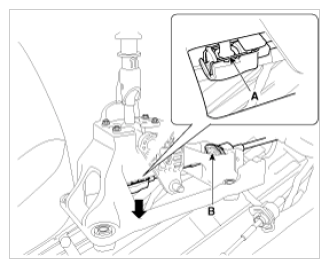

Remove the shift cable (B) after removing the clip (A).

Fig 3: Removing Shift Cable
Courtesy of HYUNDAI MOTOR AMERICA

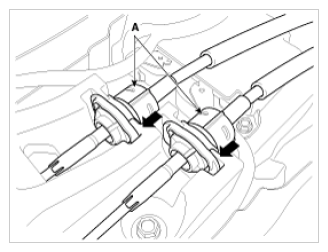

Remove the cable guide (A) from lever assembly after pulling in the direction of the arrow.

Fig 4: Removing Cable Guide From Lever Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Remove the crash pad and cowl cross bar.
(Refer to "COWL CROSS BAR ASSEMBLY ")
Remove the heater unit.
(Refer to "HEATER UNIT ")

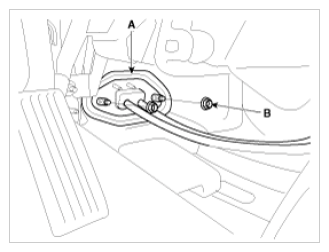

Remove the retainer (A) after loosen the nut (B).

Fig 5: Identifying Retainer And Nut
Courtesy of HYUNDAI MOTOR AMERICA
Remove the following components:
1. Engine cover.
  (Refer to "ENGINE COVER ")
2. Air cleaner assembly and air duct.
  (Refer to "AIR CLEANER ")
3. Battery and battery tray.
  (Refer to "BATTERY ")

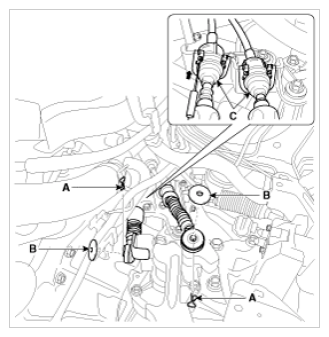

Remove the shift & select cable.
1. Remove the pin (A) and washer (B).
2. Make unlock clip (C) and then remove the shift & select cable and the clip (C) from the bracket.

  Fig 6: Identifying Shift, Select Cable And Clip
  Courtesy of HYUNDAI MOTOR AMERICA
  NOTE:
  - Do not reuse the clip (C).
Remove the shift cable at cabin room.
