Repair procedures: Installation

  1. Installation is the reverse of removal.
    NOTE:
    • When installing, set control shaft lever to neutral position.

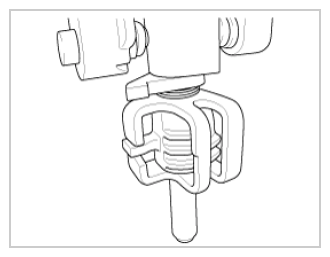

      Fig 1: Identifying Control Shaft Lever
      G09886141Courtesy of HYUNDAI MOTOR AMERICA
    • When installing, apply the sealant as shown in the illustration.

      Specified sealant: MS 721-40 or MS721-38

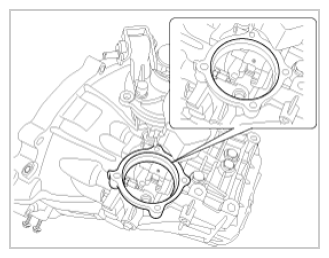

      Fig 2: Identifying Sealant
      G09886142Courtesy of HYUNDAI MOTOR AMERICA
  2. After installing, check to be sure that this part operates as designed at each range of T/M side corresponding to each position of shift lever.
