Repair Procedure: Installation

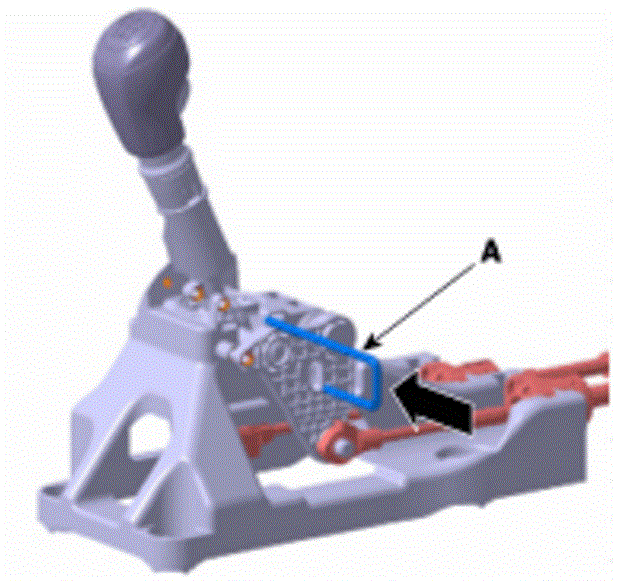

CAUTION: * When installing cable, place the transaxle lever and the shift lever in 4th shift position and insert the lever fixing pin (A).
Fig 1: Shift Lever Fixing Pin
G00540398Courtesy of HYUNDAI MOTOR AMERICA
  1. Install the retainer (A) and tighten the nut (B).
  2. Tightening torque:  11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7 ~ 10.8 lb-ft)

    Fig 2: Retainer And Nut
    G00558363Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the heater unit.
  4. (Refer to REPLACEMENT )

  5. install the main crash pad assembly
  6. (Refer to MAIN CRASH PAD REPLACEMENT )

  7. Install the shift cable (B) and then fixing the pin (A).
  8. Fig 3: Shift cable & Shift Cable Clip
    G00558360Courtesy of HYUNDAI MOTOR AMERICA
  9. Install the select cable (B) and then fixing the snap pin (A).
    Fig 4: Select Cable & Snap Ring
    G00558358Courtesy of HYUNDAI MOTOR AMERICA
  10. Assemble the new clip (A) to the cable bracket and install the cable (B).
  11. Fig 5: Installing Cable Bracket & Clips
    G00558366Courtesy of HYUNDAI MOTOR AMERICA
  12. Move the locker (B) in the direction of "F" with pulling the holder (A) in the direction of "P".
  13. Fig 6: Locker & Holder
    G00558367Courtesy of HYUNDAI MOTOR AMERICA
  14. Install the select cable (A), and then fixing the pin (B).
  15. Fig 7: Select Cable & Fixing Pins
    G00558368Courtesy of HYUNDAI MOTOR AMERICA
  16. Fastening the holder (A) to the "P" directions after fixing the rockers (B) in the "F" direction.
  17. Fig 8: Locker & Holder
    G00558367Courtesy of HYUNDAI MOTOR AMERICA
  18. Remove the fixing pin (A).
  19. Fig 9: Shift Lever Fixing Pin
    G00558361Courtesy of HYUNDAI MOTOR AMERICA
  20. install the bracket cover (A).
  21. Fig 10: Bracket Cover
    G00558357Courtesy of HYUNDAI MOTOR AMERICA
  22. install the air duct (A).
  23. Fig 11: Air Duct
    G00558356Courtesy of HYUNDAI MOTOR AMERICA
  24. Install the floor Interior console assembly.
  25. (Refer to REPLACEMENT )

  26. Install battery and battery tray.
  27. (Refer to INSTALLATION )

  28. install air cleaner assembly and air duct.
  29. (Refer to REMOVAL )

CAUTION:
  • New shift lever assembly includes a 4th retaining pin.

    Remove the 4th retaining pin after installing.

  • Check operating of lever of transaxle side when operating shift lever after assembly. (1~6, R)
