Repair Procedure: Removal

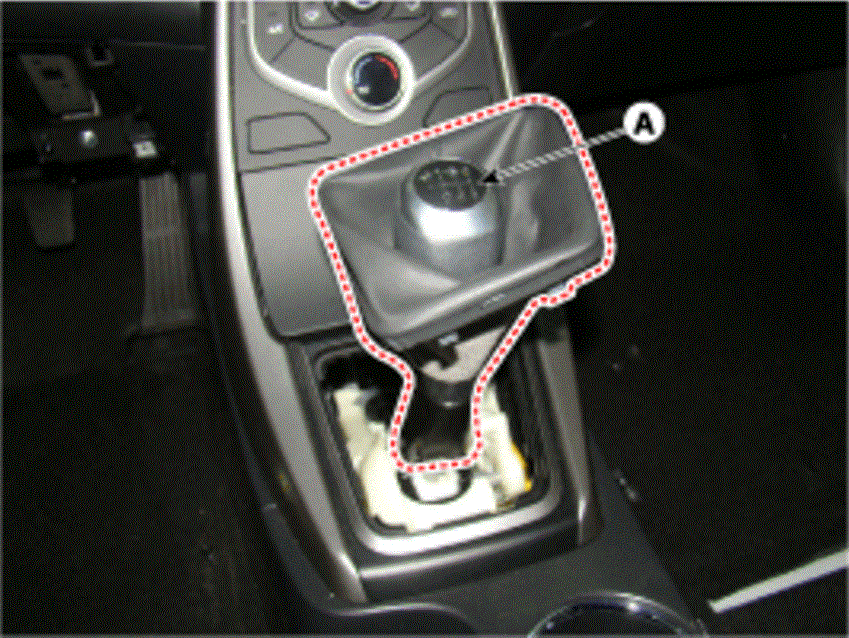

  1. Separate the boot and remove the knob (A) by rotating it counterclockwise.
    2. Fig 1: Shift Knob & Boot
    G00540397Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the floor Interior console assembly.

    (Refer to REPLACEMENT )

  3. Remove the air duct (A) by removing the nut.
    Fig 2: Air Duct
    G00558356Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the bracket cover (A) by removing the nuts.
    Fig 3: Bracket Cover
    G00558357Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the select cable (B) by removing the snap pin (A).
    Fig 4: Identifying Select Cable & Snap Ring
    G00558358Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the shift lever assembly (A) by removing the bolts.
    7. Fig 5: Shift Lever Assembly
    G00558359Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the shift cable (B) by removing shift cable clip (A).
    8. Fig 6: Shift cable & Shift Cable Clip
    G00558360Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the main crash pad assembly.

    (Refer to MAIN CRASH PAD REPLACEMENT )

  9. Remove the heater unit.

    (Refer to HEATER UNIT )

  10. Remove the retainer (A) after loosen the nut (B).
    11. Fig 7: Retainer And Nut
    G00558363Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the engine cover.

    12. (Refer to REMOVAL )

  12. Remove the air cleaner assembly and air duct.

    13. (Refer to REMOVAL )

  13. Remove the battery and battery tray

    (Refer to REMOVAL )

  14. Remove the control cable.
    1. Remove the pin (A).
    2. Unlock the cable bracket clip (B) and remove it with the cable.
      3. Fig 8: Cable Bracket Clip & Pin
      G00558364Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • When removing the cable clip, spread it by pressing the "B" portion.
    • Replace the clip with a new one once it is removed.
    Fig 9: Cable Clips
    G00558365Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove the shift cable at cabin room.
