Signal Waveform & Data

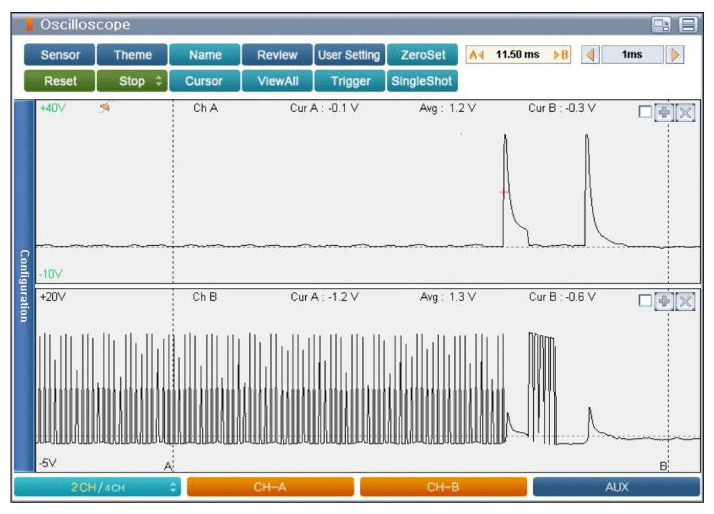

Fig 1: Display - Normal Waveform Of FPR (B1) At Idle Screen
G09792764Courtesy of HYUNDAI MOTOR AMERICA

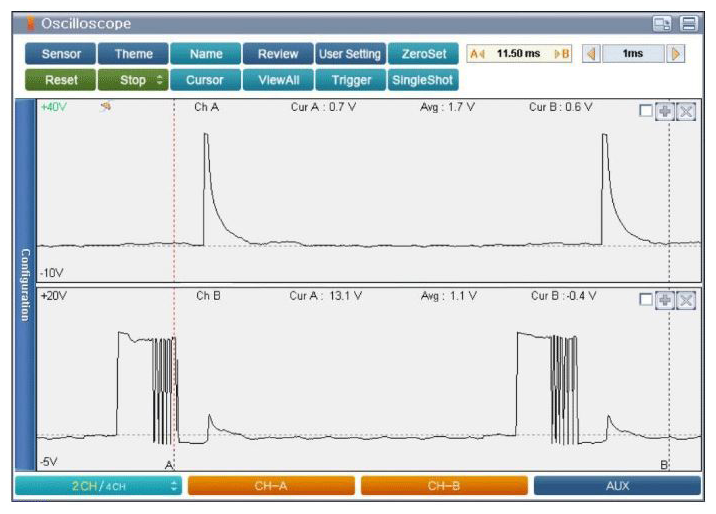

Fig 2: Display - Normal Waveform Of FPR (B2) Parameter At Acceleration And Deceleration Screen
G09792765Courtesy of HYUNDAI MOTOR AMERICA
