Circuit Diagram

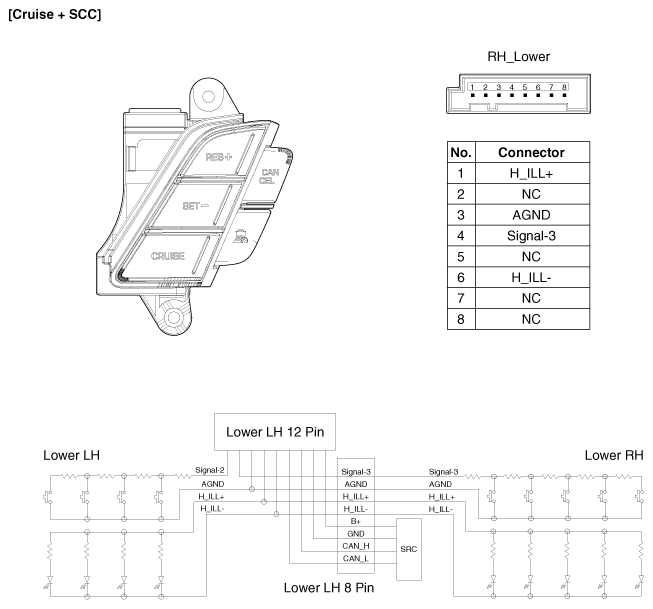

Fig 1: Smart Cruise Control Switch - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
