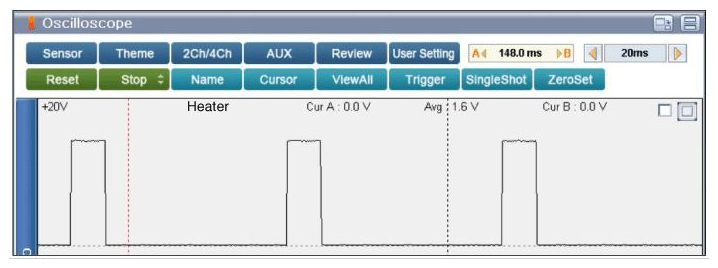

Signal Waveform & Data
The output voltage of front HO2S is changed continuously according to air/fuel ratio, ECM controls fuel amount based on this value. Preheating is necessary for HO2S normal operation. Therefore heater unit is installed in HO2S, ECM can control air/fuel ratio with the output signal of HO2S simultaneous with engine run by reducing preheating time. ECM controls heater with duty cycle. HO2S' power source is main relay and ECM operates heater by ground control.
