Key Reminder Switch Inspection
WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

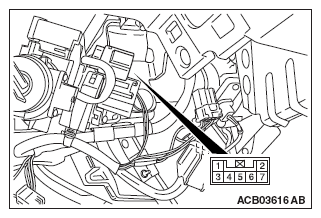

With the key reminder switch mounted to the vehicle, disconnect the key reminder switch connection connector, and then perform the continuity check.
| Key status |
Terminal number |
Normal condition |
| Key removed |
4 - 6 |
Continuity exists (2 ohms or less) |
| Key inserted |
4 - 6 |
No continuity |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
