Power Seat Memory Unit (For Driver)

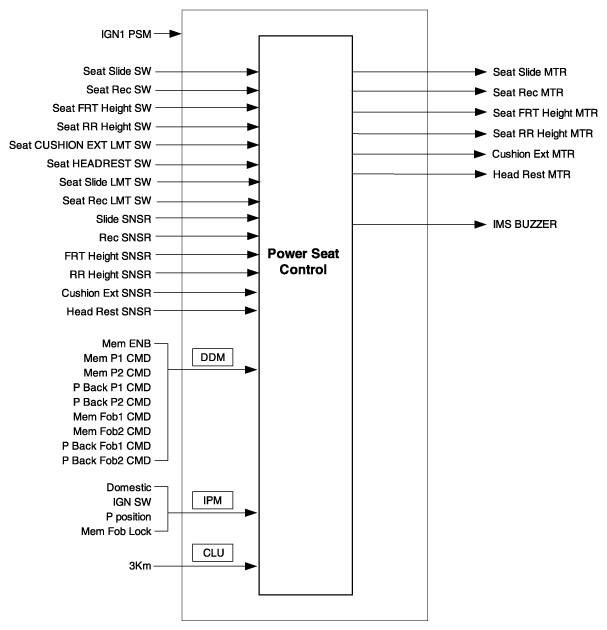

Fig 1: Power Seat Memory Unit Communication Diagram (For Driver)
G09791020Courtesy of HYUNDAI MOTOR AMERICA
