I/P Junction Box RH Connector End View (I/P-RHA)

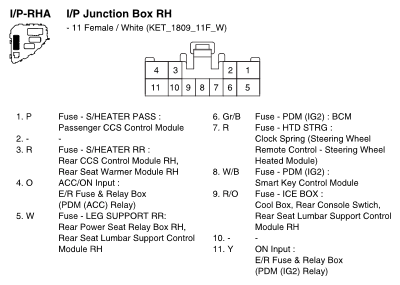

Fig 1: I/P Junction Box RH Connector End View (I/P-RHA)
G10734896Courtesy of HYUNDAI MOTOR AMERICA
