Repair Procedures: Installation: Notes

Turn the engine OFF.
Disconnect the battery negative cable and wait for at least three minutes before beginning work.
Install the SRSCM with the SRSCM mounting bolts.
Tightening torque:

7.5 ~ 10.5 N.m (0.76 ~ 1.07 kgf.m, 5.5 ~ 7.7 lb-ft)

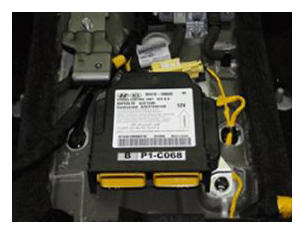

Fig 1: Identifying SRSCM Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Use new mounting bolts when replacing the SRSCM after a collision.
- When installing the SRSCM bolt, install the ground wire (A) with a bolt as indicated in the illustration.

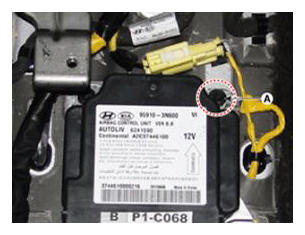

  Fig 2: Identifying Ground Wire
  Courtesy of HYUNDAI MOTOR AMERICA
Connect the SRSCM harness connector.
Install the floor console assembly.
(Refer to "FLOOR CONSOLE ASSEMBLY ")
Reconnect the battery negative cable.
After installing the SRSCM, confirm proper system operation:
Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.

CAUTION: If the SRSCM is replaced always, perform variant coding. Also, perform the lateral G sensor 0 point setup. (Refer to "YAW-RATE AND LATERAL G SENSOR ")
