Components and Components Location: Components

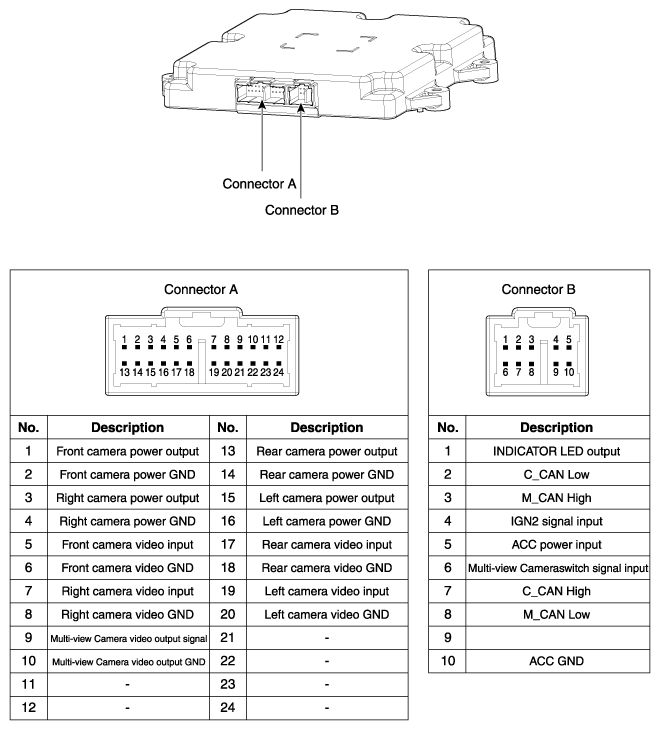

Fig 1: Identifying Multi-View Camera Unit Connector Pins
G09791433Courtesy of HYUNDAI MOTOR AMERICA
