Components and Components Location: Components

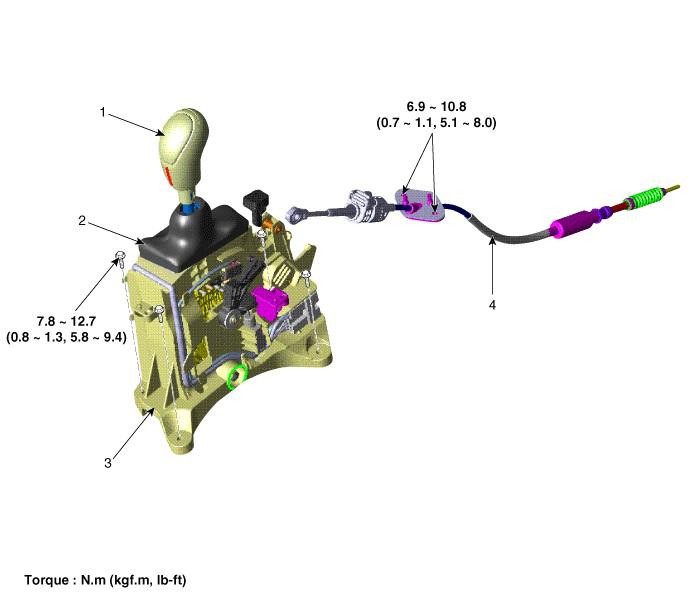

Fig 1: Shift Lever Assembly With Torque Specifications
G00551201
1. Shift lever knob 3. Shift lever assembly
2. Shift lever boots 3. Shift lever assembly 4. Shift cable
