[EWGA Position Sensor]

Position	Output Voltage (V)	Operating Angle (°)	Range of Rod (mm), reference
Mechanical Close end stop Position (MCP)	4.8	0	0
Electrical Close end stop Position (ECP)	3.8	22	1.9
Electrical Open end stop Position (EOP)	1.2	81	13
Mechanical Open end stop Position (MOP)	0.5	97	16

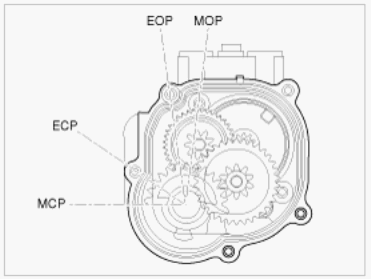

Fig 1: Locating Electric WGT Control Actuator Components

Courtesy of HYUNDAI MOTOR CO.

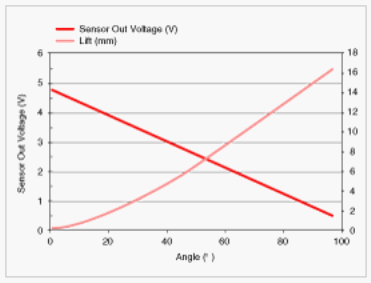

Fig 2: Electric WGT Control Actuator Graph

Courtesy of HYUNDAI MOTOR CO.
