Repair Procedures: Removal: A/T

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the ECM Connector (A).
  3. Disconnect the TCM connector (B).
  4. Remove the ECM bracket installation bolts (C) and nut (D).
    5. Fig 1: Identifying ECM Connector, TCM Connector, ECM Bracket Bolts, & Nut
    G06514126Courtesy of HYUNDAI MOTOR CO.
  5. Remove the ECM from bracket after removing the installation bolts (A).

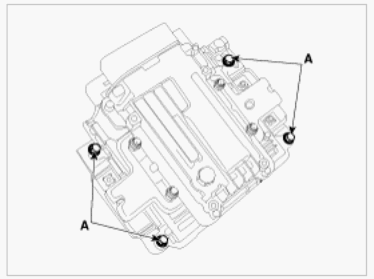

    Fig 2: Identifying ECM Bracket Bolts
    G00540649Courtesy of HYUNDAI MOTOR CO.
