Repair Procedures: Removal: M/T

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the front strut assembly. (Refer to "FRONT STRUT BAR ").
  3. Disconnect the ECM connector (A).

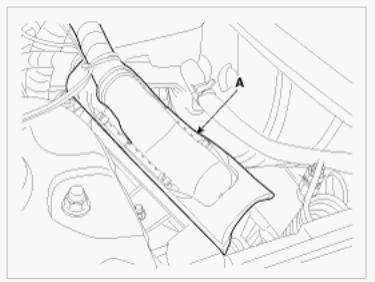

    Fig 1: Identifying ECM Connector
    G00540650Courtesy of HYUNDAI MOTOR CO.
  4. Remove the ECM after removing the installation bolts (A).

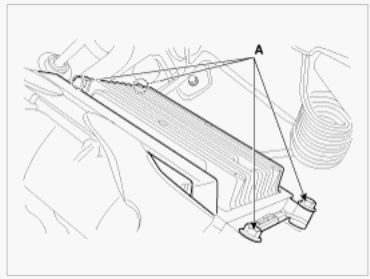

    Fig 2: Identifying ECM Installation Bolts
    G00540651Courtesy of HYUNDAI MOTOR CO.
