Manifold Absolute Pressure Sensor (MAPS): Specifications: Specification

PRESSURE AND OUTPUT VOLTAGE CHART

Pressure [kPa (kg/cm, psi)]	Output Voltage (V)
32.5 (0.33, 4.71)	0.5
284 (2.90, 41.20)	4.5

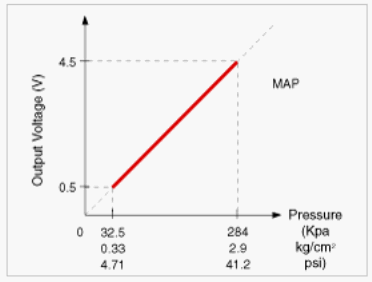

Fig 1: Output Voltage & Pressure Graph

Courtesy of HYUNDAI MOTOR CO.
