Boost Pressure Sensor (BPS): Specification

Pressure [kPa (kgf/cm2 , psi)] Output Voltage (V)
32.5 (0.33, 4.71) 0.5
284.0 (2.90, 41.20) 4.5

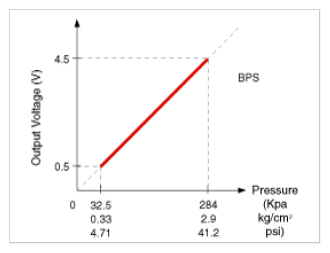

Fig 1: Boost Pressure Sensor Output Voltage Versus Pressure Graph
G09364985Courtesy of HYUNDAI MOTOR AMERICA
