Components Location

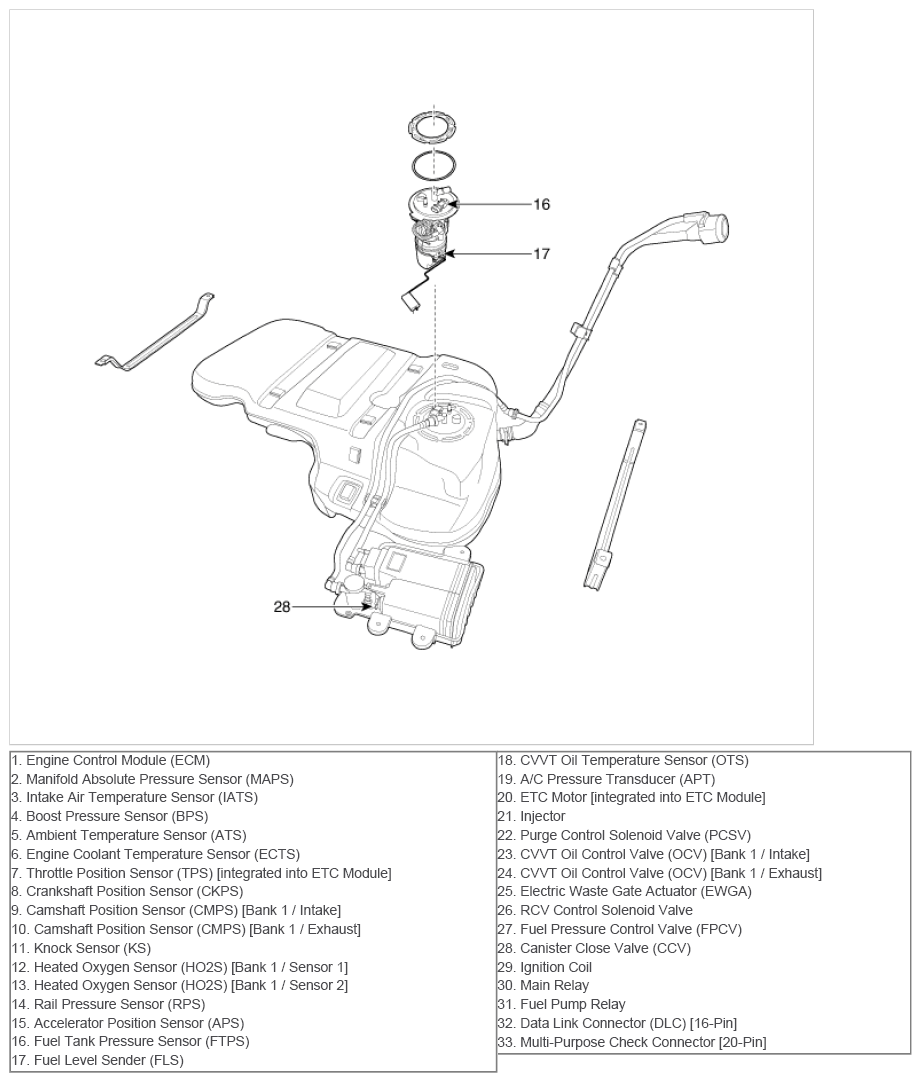

Fig 1: Identifying Engine Control/Fuel System Components (1 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

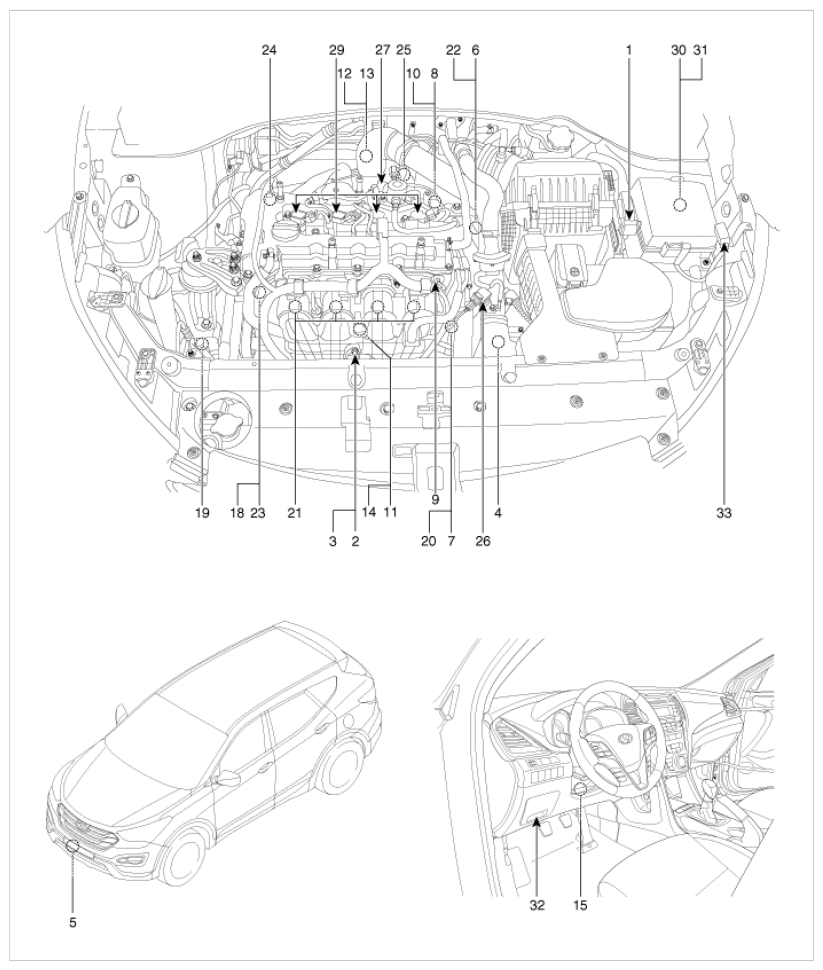

Fig 2: Identifying Engine Control/Fuel System Components (2 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

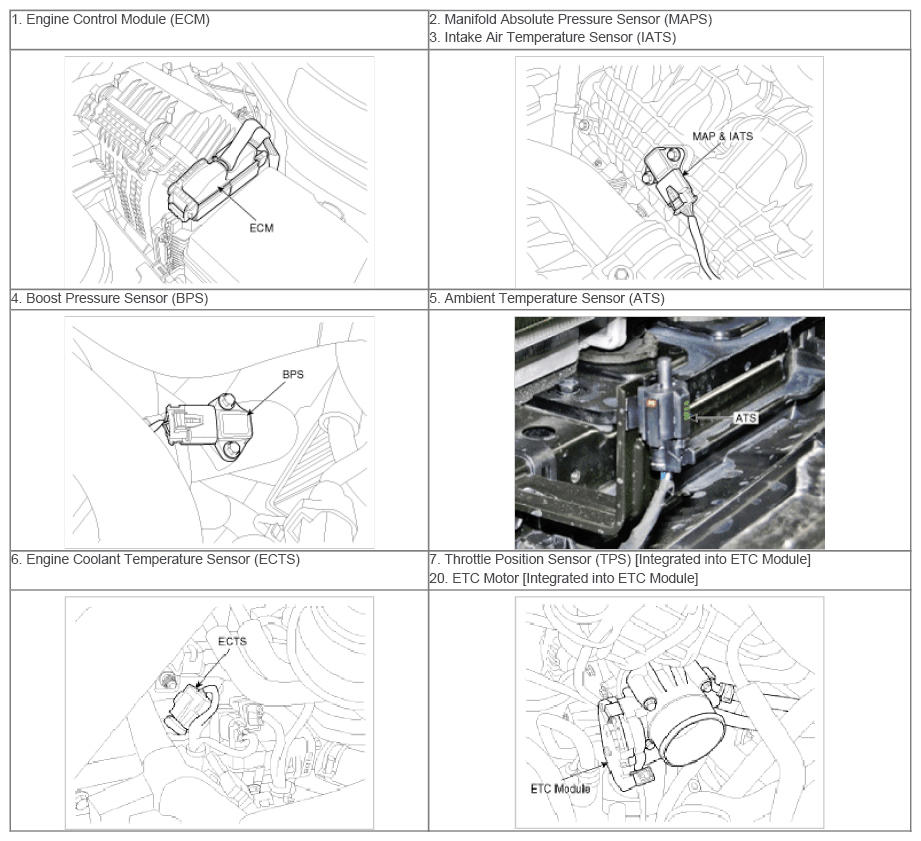

Fig 3: Identifying Engine Control/Fuel System Components (3 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

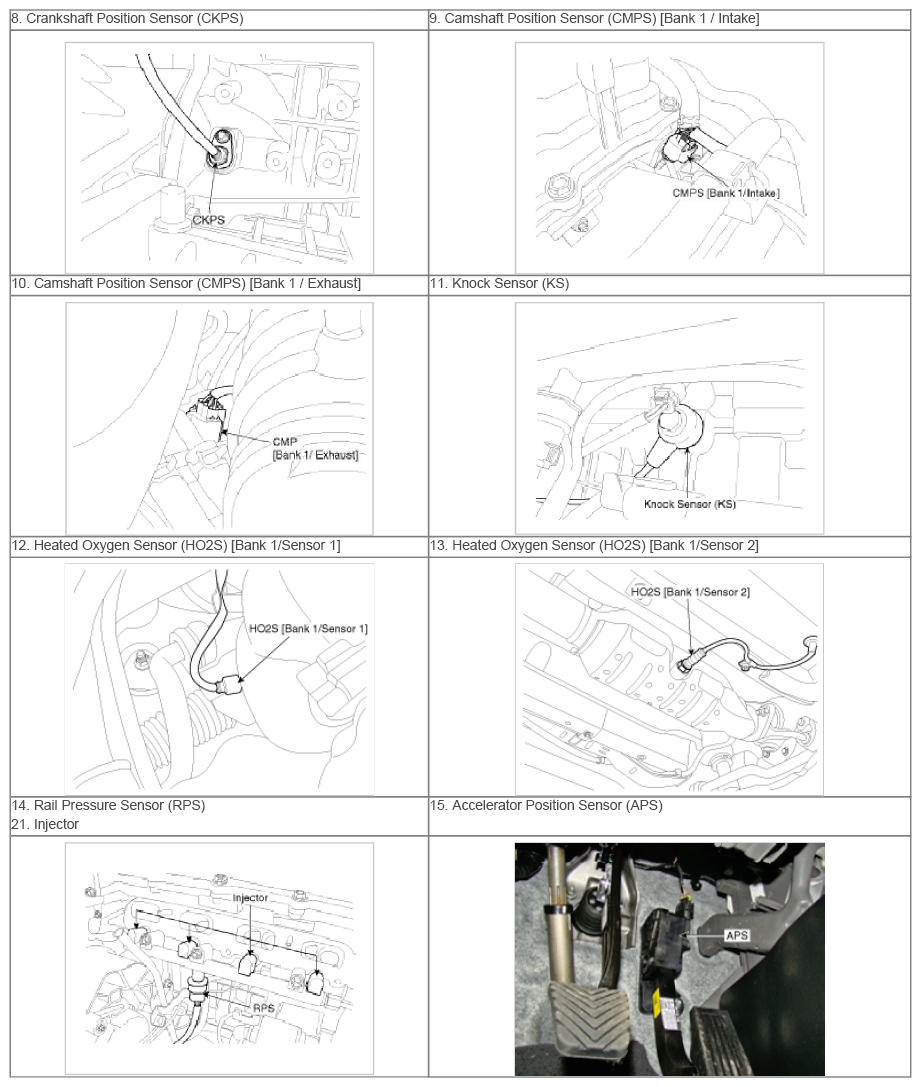

Fig 4: Identifying Engine Control/Fuel System Components (4 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

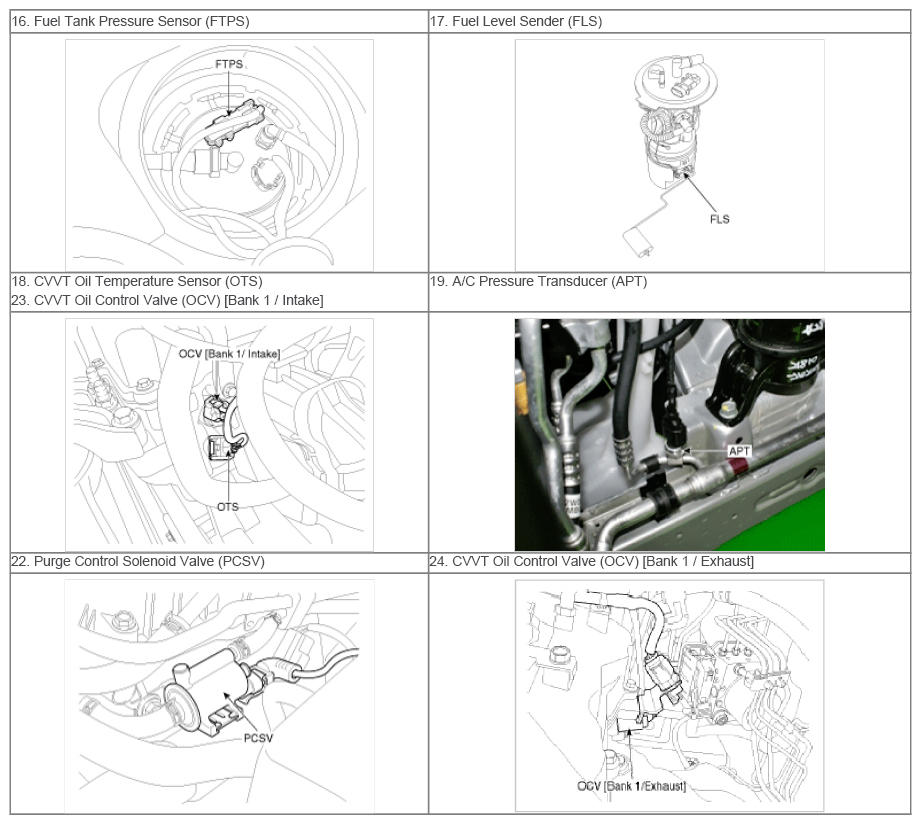

Fig 5: Identifying Engine Control/Fuel System Components (5 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

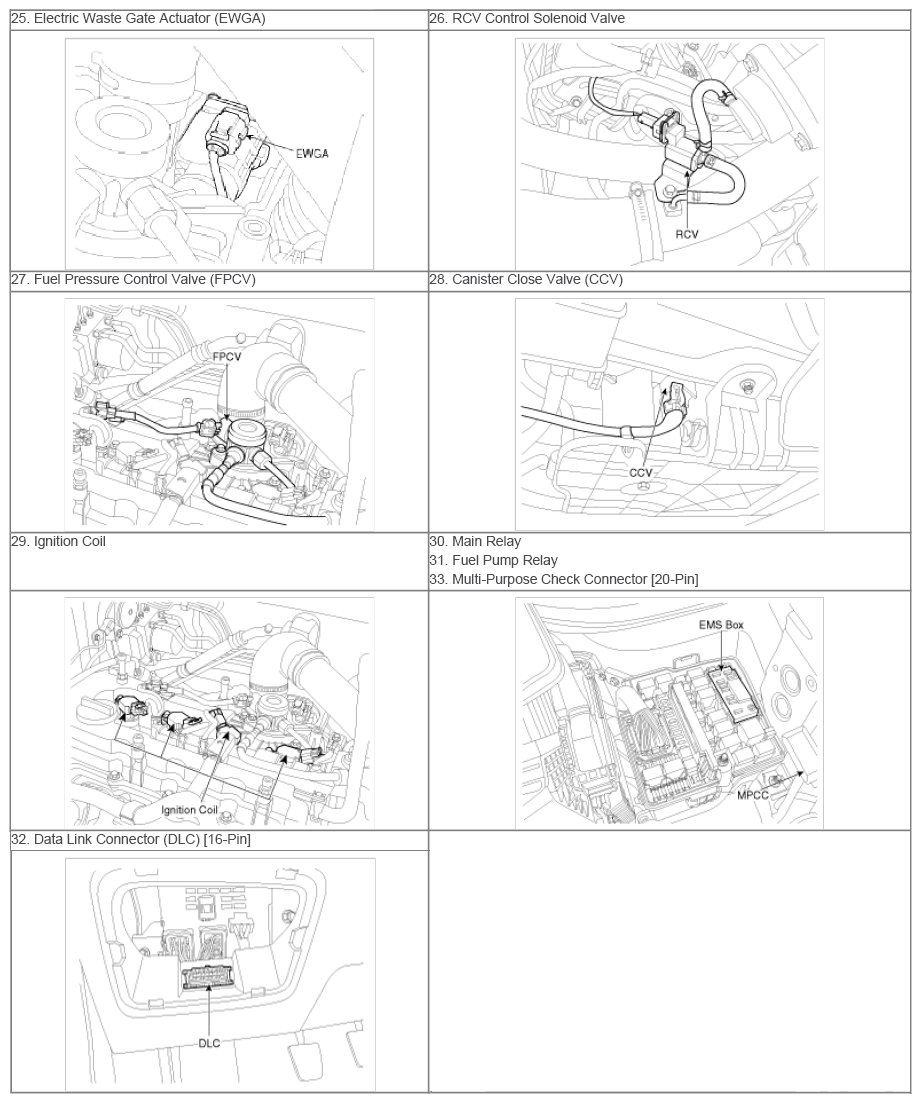

Fig 6: Identifying Engine Control/Fuel System Components (6 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA
