Components Location

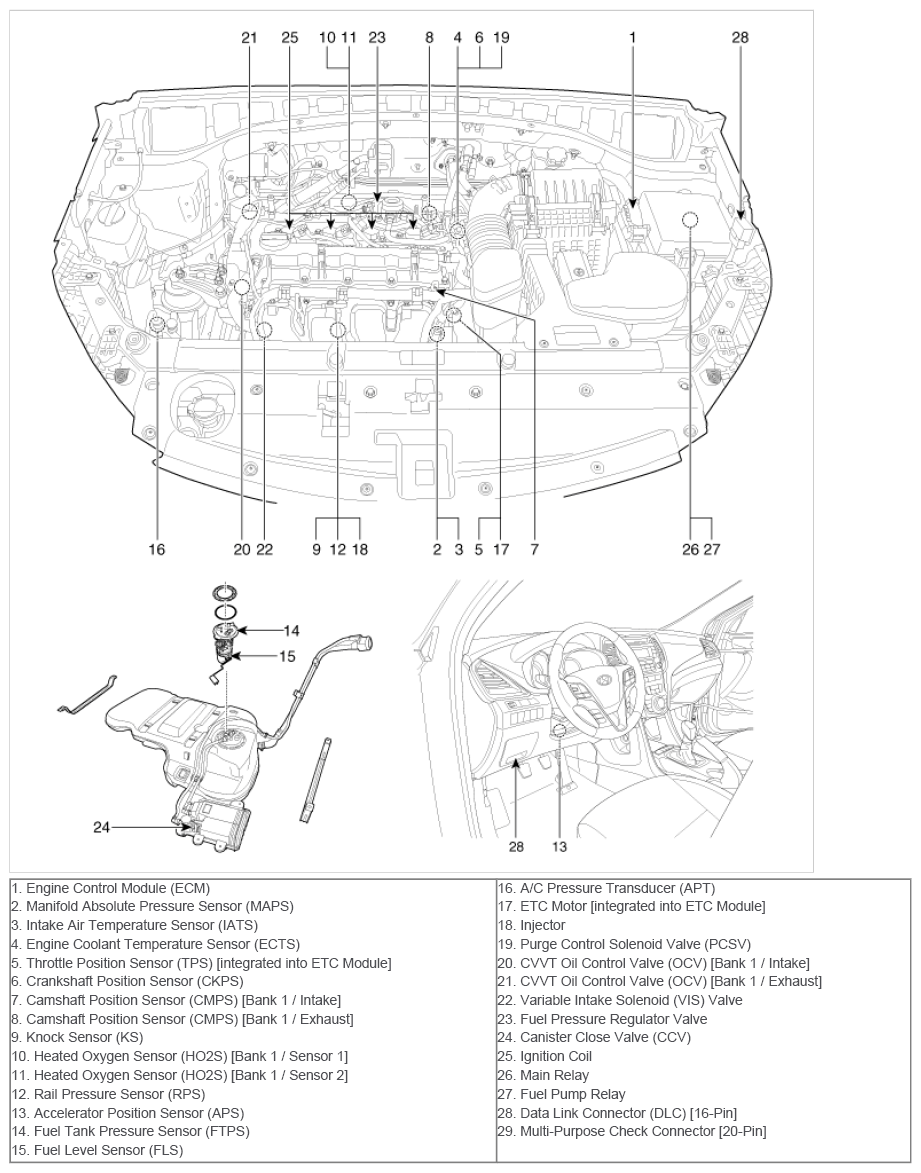

Fig 1: Identifying Engine Control/Fuel System Components (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

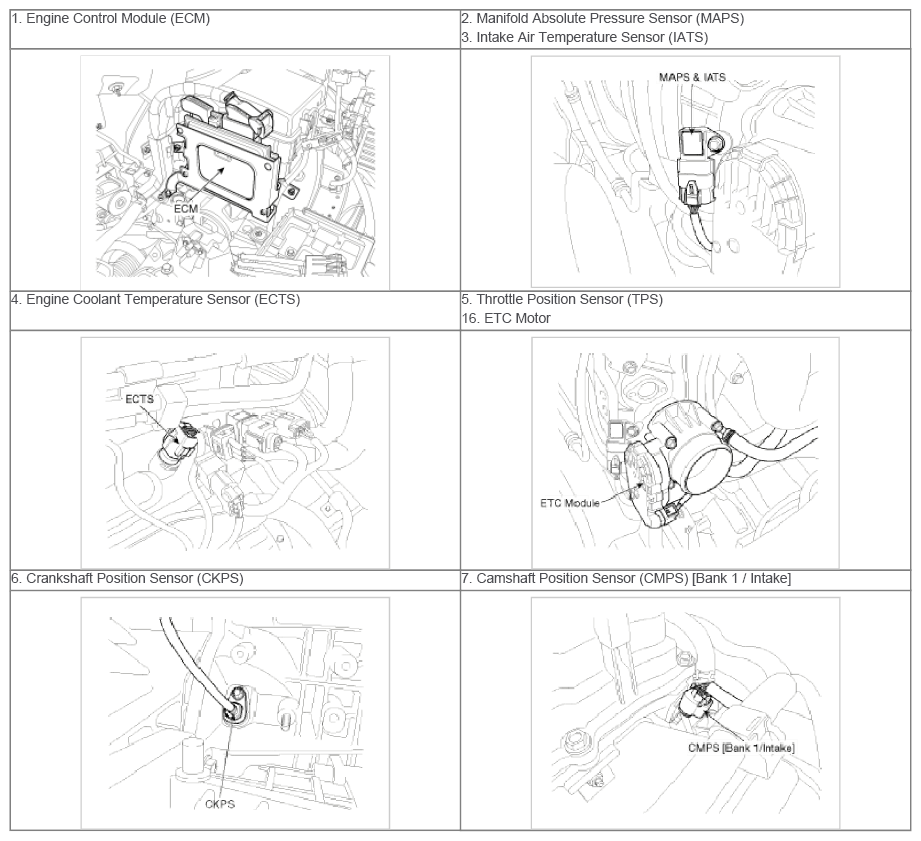

Fig 2: Identifying Engine Control/Fuel System Components (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

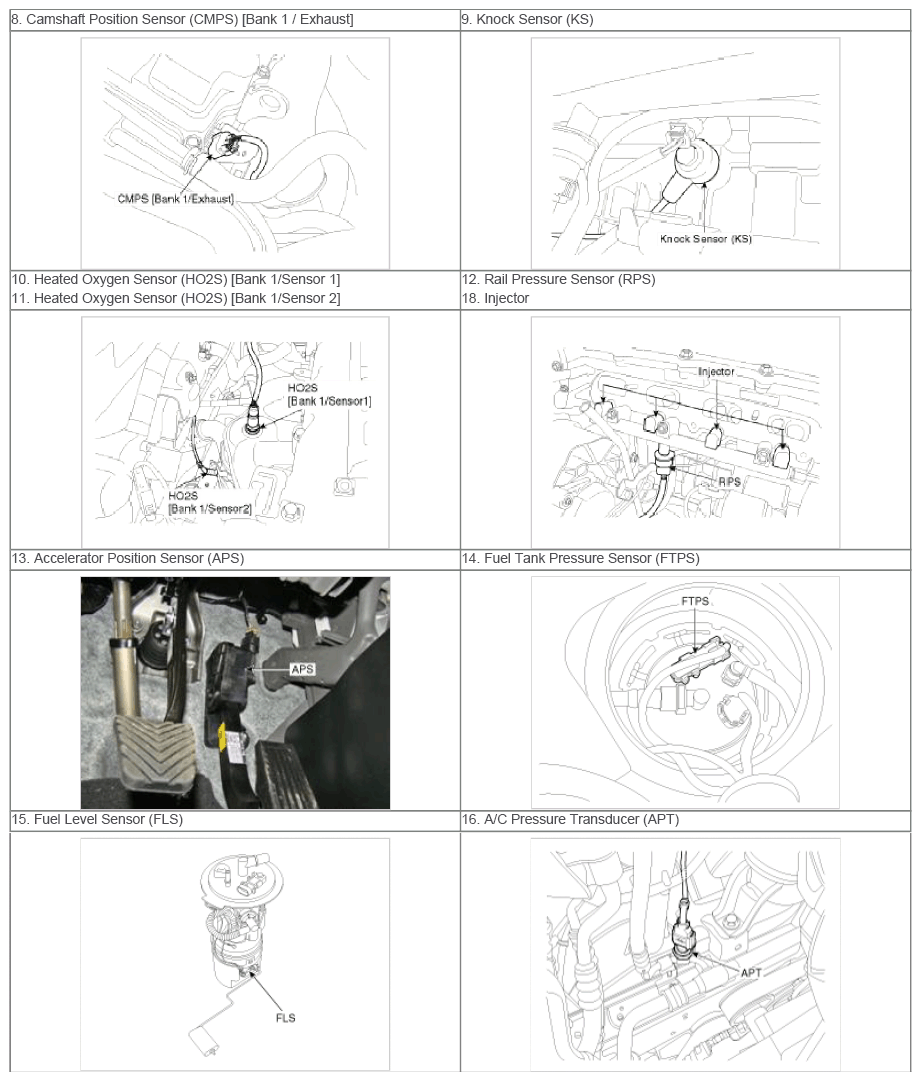

Fig 3: Identifying Engine Control/Fuel System Components (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

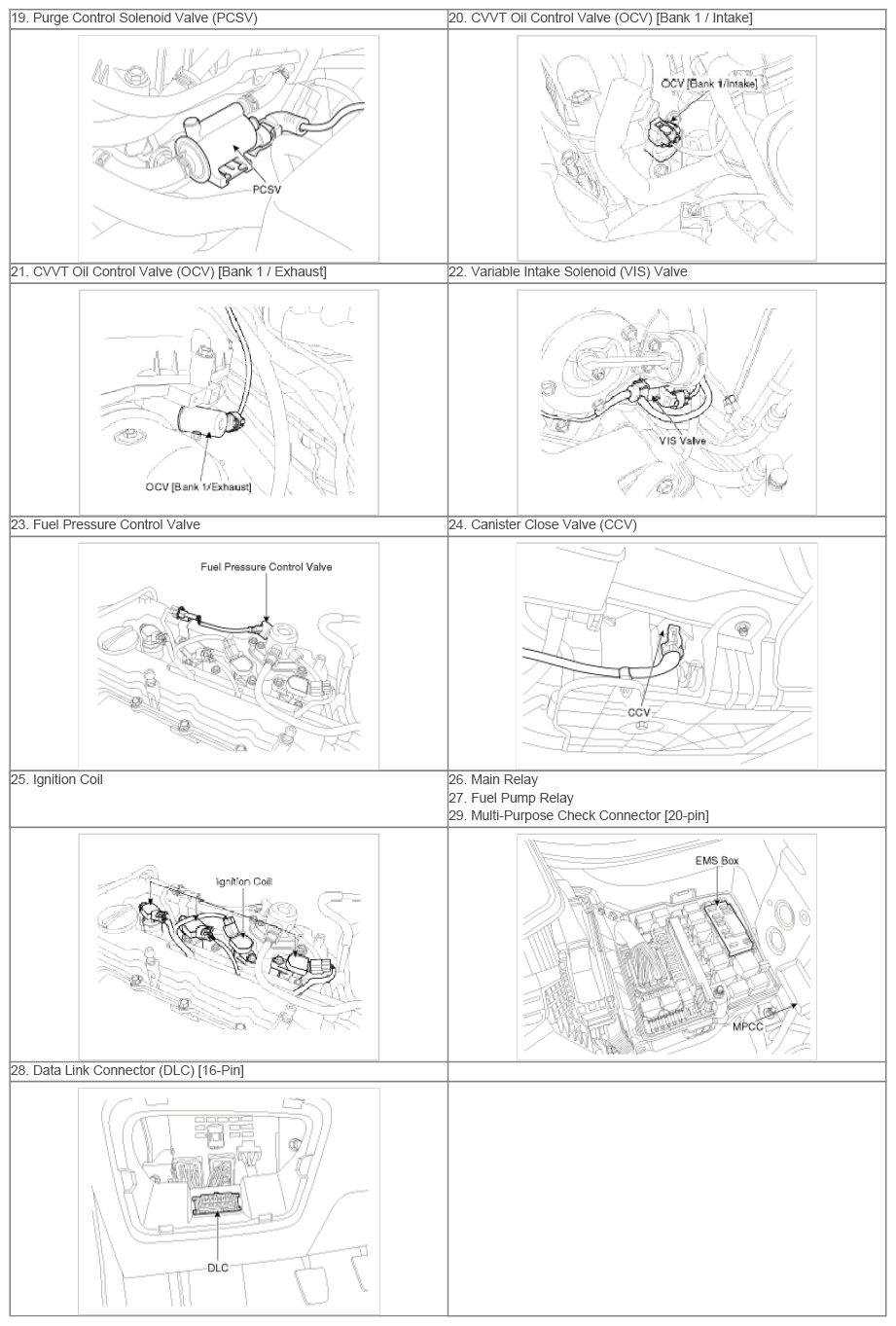

Fig 4: Identifying Engine Control/Fuel System Components (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
