Santa Fe XL Base
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views (Engine Management System Box)
>>
Connector End Views
>>
EMS Box Connector End View Connector End View (E/R-A)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
EMS Box Connector End View Connector End View (E/R-A)

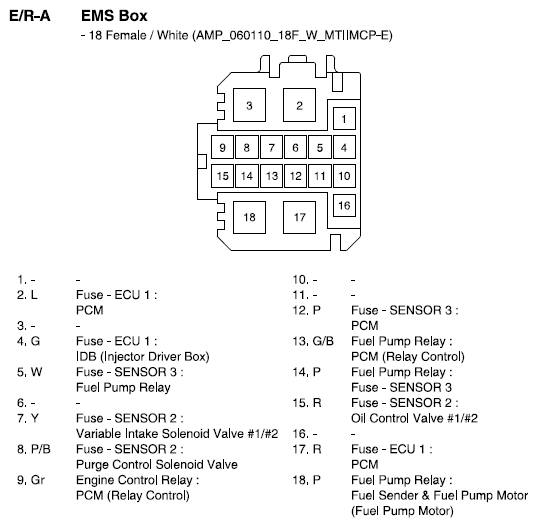

Fig 1: EMS Box Connector End View Connector End View (E/R-A)
