Main Crash Pad Replacement

CAUTION:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the following items.
1. Front seat.
  (Refer to FRONT SEAT .)
2. Floor console
  (Refer to CONSOLE .)
3. Cluster.
4. Crash pad lower panel & Reinforce panel.
5. Audio assembly.
6. Heater control unit.
7. Crash pad side air vent.
8. Glove box & Glove box housing.
9. Crash pad side cover.
10. Front pillar trim.
  (Refer to INTERIOR TRIM .)
11. Steering column
  (Refer to STEERING COLUMN AND SHAFT .)
Using a screwdriver or remover, remove the center air vent (A).

Fig 1: Center Air Vent
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 2: Identifying Electrical Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the lock pin, disconnect the passenger's air bag connector (A).
Loosen the mounting bolts.

Fig 3: Identifying Passenger's Air Bag Connector
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver or remover, remove the photo senor (A).
Disconnect the photo senor connector (B).

Fig 4: Identifying Photo Senor And Connector
Courtesy of HYUNDAI MOTOR CO.

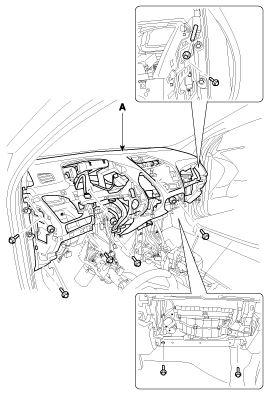

After loosening the mounting bolts and nuts, then remove the crash pad assembly (A).

Fig 5: Identifying Crash Pad Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
