Engine Control System - 2.0L
>>
ETC (Electronic Throttle Control) System
>>
Schematic Diagrams
>>
Circuit Diagram
>>
(M/T)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram: (M/T)

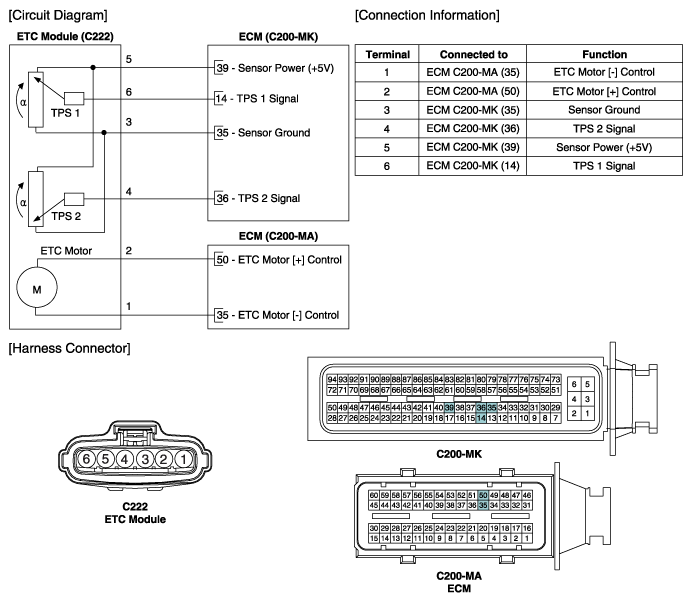

Fig 1: ETC Motor Circuit Diagram (M/T)
