Connector Pin Information

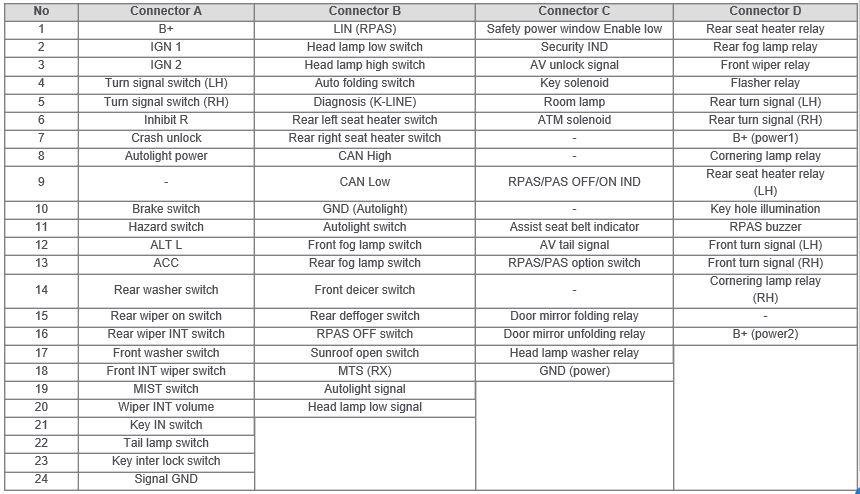

Fig 1: BCM Connector Pin Information
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
