AVN (A/V & Navigation) Head Unit Connector

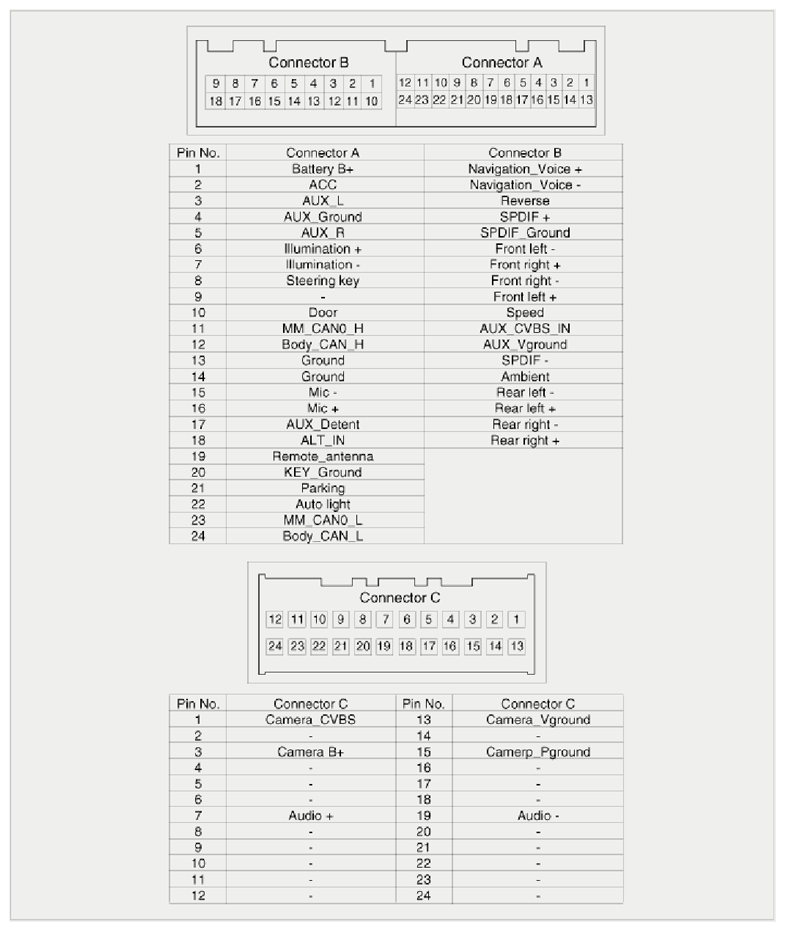

Fig 1: AVN (A/V & Navigation) Head Unit Connector Terminal Chart
G09134387Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: AVN (A/V & Navigation) Head Unit Connector Terminal Chart
G09134388Courtesy of HYUNDAI MOTOR AMERICA

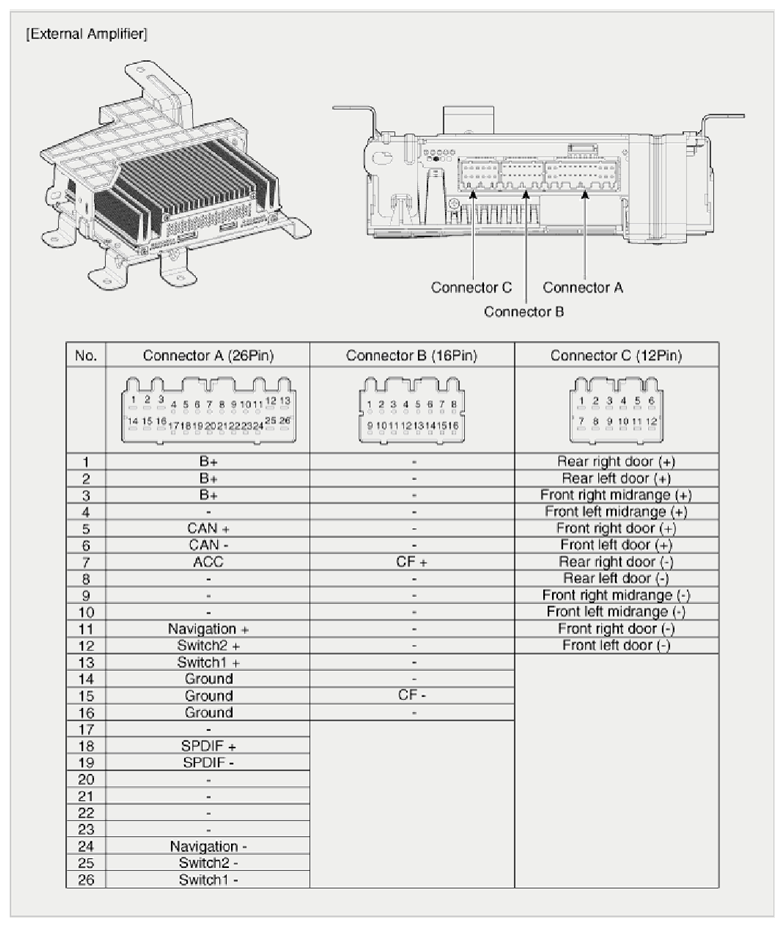

Fig 3: External Amplifier Connector Terminal Chart
G09134389Courtesy of HYUNDAI MOTOR AMERICA

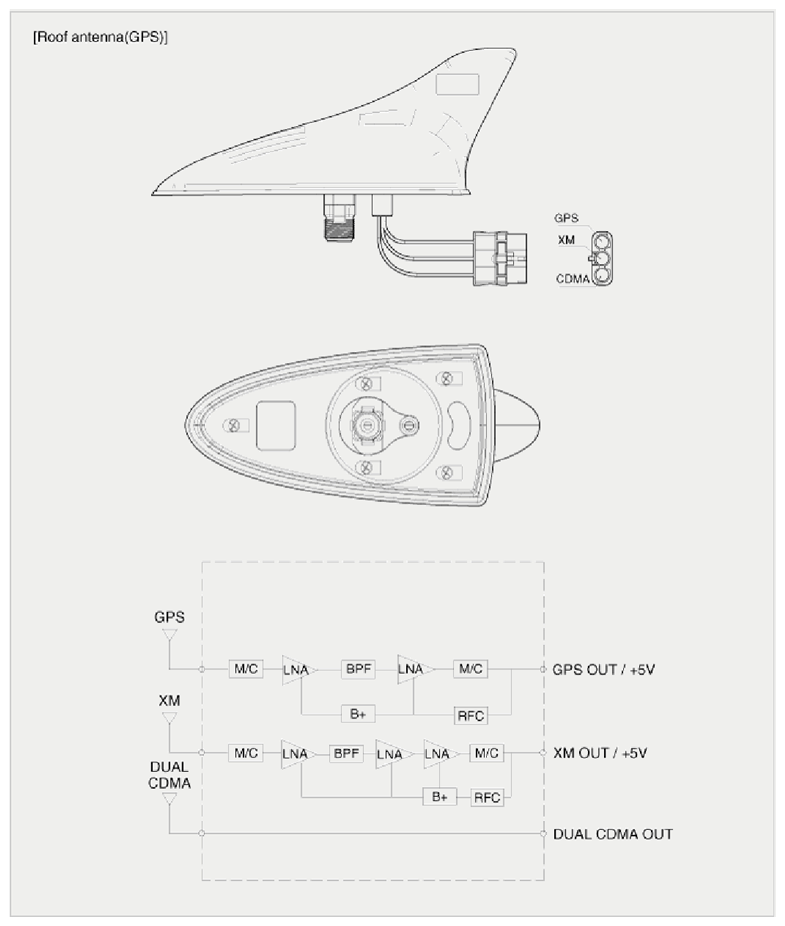

Fig 4: Roof Antenna (GPS) Connector Terminal Chart
G09134390Courtesy of HYUNDAI MOTOR AMERICA
