Smart Key Control Module Connector End View (M13-A)

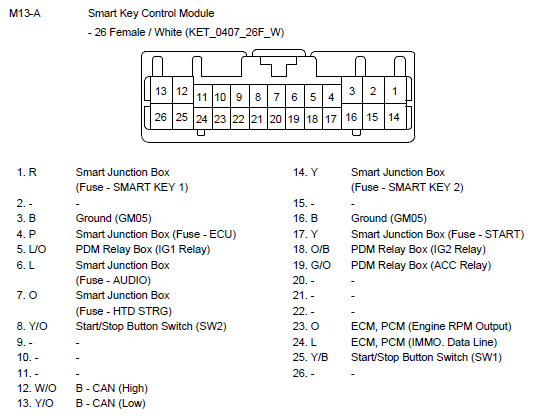

Fig 1: Smart Key Control Module Connector End View (M13-A)
G10785640Courtesy of HYUNDAI MOTOR AMERICA
