Signal Circuit Inspection

Check Open or Short in signal circuit
1. IG KEY "OFF".
2. Disconnect IATS connector.
3. IG KEY "ON" & ENG "OFF".
4. Measure voltage between signal terminal of IATS harness connector and chassis ground.
  Specification: Approx. 5V

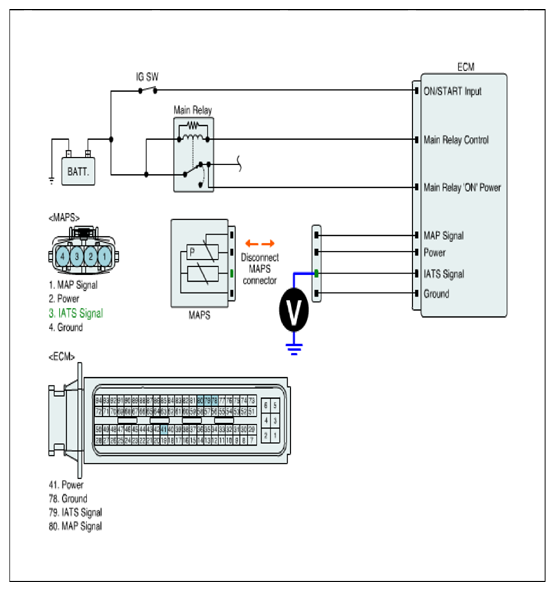

  Fig 1: Measuring Voltage Between Signal Terminal Of IATS Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR AMERICA
5. Is the measured voltage within specification?
  YES

  Go to "COMPONENT INSPECTION " procedure.

  NO

  Check for Open or Short in IATS circuit. Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
