Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC)
  2. IG KEY "ON" & ENG "OFF".
  3. Monitor the "IATS" parameters on the GDS.

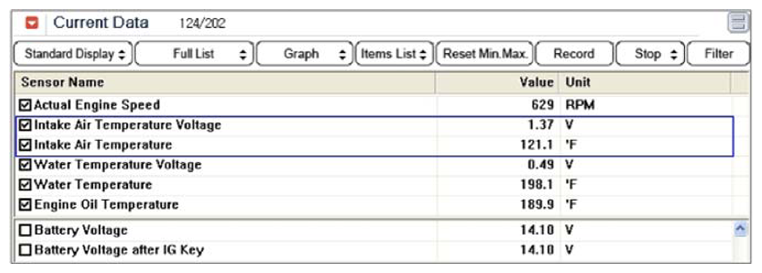

    Fig 1: Display - IATS Parameters
    G08813491Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the "IATS" parameter displayed correctly?

    YES

    Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    Go to "TERMINAL & CONNECTOR INSPECTION " procedure.
