Signal Waveform & Data

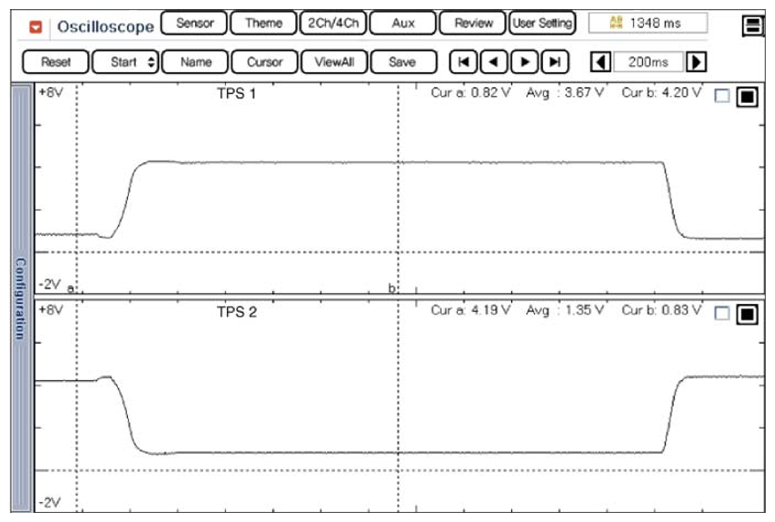

Fig 1: Display - Normal Waveform Of TPS1 And TPS2 With No Accel Pedal Depressed Under IG ON Condition
G08813659Courtesy of HYUNDAI MOTOR AMERICA
